100W 277V 5000K 14000LM Exterior Parking Lot Lights 1-10V DIM
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-ESBC7100WCT3A1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/ctn, 25*16*7inch, 17lbs, 1850pcs/40HQ |
| Delivery Time: | 1-2days |
| Payment Terms: | T/T, CC, PP, Western Union |
| Supply Ability: | 2500pcs |
|
Detail Information |
|||
| Product Name: | Yoke Mount LED Pole Lights | Power: | 100W |
|---|---|---|---|
| Lamp Luminous Efficiency(lm/w): | 125-140 LM/W | Waterproof Rating: | IP65 |
| Beam Angle: | Type 3 Angle | LED Brand: | SEOUL Brand |
| LED Qty: | 98 Pcs | Color Temperature(cct): | 40K, 50K, 57K |
| Input Voltage(v): | AC 100-277V | LED Driver: | China Brand Driver （Sosen Brand） |
| Driver Model: | SS-100VA-56B | Lamp Body Material: | Aluminum Alloy |
| Warranty(year): | 5 Years | ||
| High Light: | LEDSION 100W exterior parking lot lights,LEDSION 5000K exterior parking lot lights,10V DIM commercial parking lot lighting fixtures |
||
Product Description

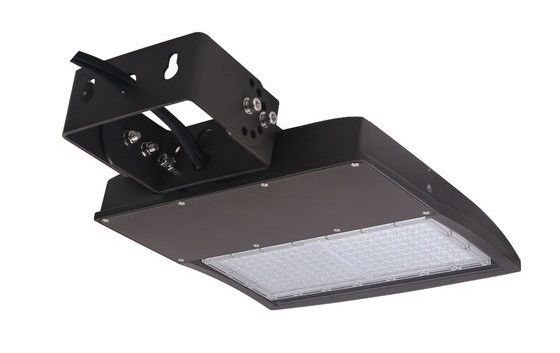

Hot-Selling LED Area Fixtures with Yoke Mount 100W Shoebox Light AC100-277V 5000K
LEDSION LED Shoebox Lights are DLC UL listed, three mounts options, Slip Filter for round pole, Pole mount for square pole or round pole, Yoke Mount for wall installation. And Photocell available. The material is the best die-casting aluminum housing, high CRI Seoul led chips, and UL Driver, anti-corrosion painting IP65 design.The lamp has first-class protection function.
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language;
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do OEM.
Features and benefits:
· High efficiency, up to 140lm/w. High Luminous flux >up to 14,000lm, more energy saving.
· Use die-cast aluminum heat sink. Great heat dissipation.
· IP65 waterproof rating, perfectly suitable for outdoor use.
· High quality, low maintenance;
· Fast and easy install;
· UL,DLC certification.
Specifications:
| Product Name | LED Shoebox Light 100W with photocell |
| Wattage | 100W |
| Lumens Efficiency |
125-140LM/W |
| Lunmen Output |
12500-14000LM |
| Color Temperature | 5000K |
| Light Distribution | Type Ⅲ |
| Input Voltage | 100-277V ac 50/60Hz |
| Mounting Bracket | AM, DM and YM |
| Dimmable | 1-10V DIM |
| Motion Sensor / Photocell | Available |
| Finish | Brown |
| Housing | Aluminum Alloy |
| IP Rating | WET (IP65) |
| Metal Halide Equal | 200W - 300W |
| DLC Certification | Yes |
| Warranty | 5 Years |
| Life Hours | 50,000hrs |
Photometrics:
Product size(mm):
AM: 529*333*92mm
DM: 568*333*160mm
YM: 464*333*89mm
Package:
| Stent Type | Lamp Net Weight | Size | Qty / Carton | Gross Weight / Carton |
| YM | 5.1KG | 585*385*160MM | 1 PC | 6KG |
| AM | 5.4KG | 585*385*160 MM | 1 PC | 6.3 KG |
| DM | 5.9 KG | 585*385*160 MM | 1 PC | 6.8KG |
| A&D | 6.3KG | 585*385*160 MM | 1 PC | 7.2 KG |
