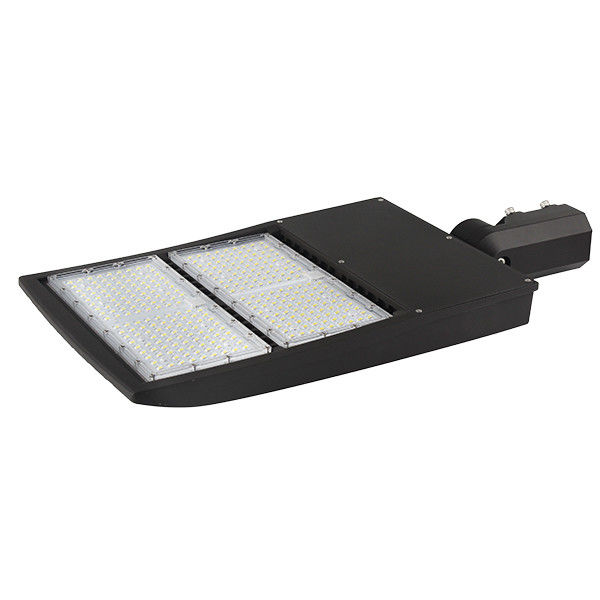

240W 5000K 100V LED Shoebox Light With Slip Fitter , UL LED Parking Lot Pole Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-ESBV7240WCT3A1-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/CTN, packing size: 32*15*7inch，weight: 22lbs |
| Delivery Time: | 1-2 days |
| Payment Terms: | T/T, CC, PP, Check, Western Union |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Product Name: | 240W LED Shoebox Light | Power: | 240W |
|---|---|---|---|
| Light Source: | Seoul SMD3030 | Lamp Luminous Flux(lm): | 130lm/W |
| Lamp Luminous Efficiency(lm/w): | 31200lm | Ip Rating: | IP65 |
| Working Temperature(℃): | -40 - 50℃ | Color Temperature(cct): | 4000K 5000K 5700K |
| Beam Angle: | Type 3 | CRI: | >70Ra |
| Lamp Body Material: | Die-casing Aluminum Housing | Working Lifetime(hour): | 50000 |
| Input Voltage(v): | 100-277Vac 50/60hz | Application: | Parking Lot, Square, Street |
| Warranty(year): | 5 Years | Certification: | UL, DLC |
| High Light: | LEDSION 240W LED Shoebox Light,LEDSION 5000K LED Shoebox Light,UL led parking lot pole lights |
||
Product Description
240W LED shoebox/pole light with slip fitter 5000K 100-277Vac coffee color
LEDSION LED Area Light | Parking Lot Light DLC UL listed, Slip Filter, Pole mount or Yoke Mount available, Photocell / Motion sensor available.
Main Features:
- UL, DLC approved certificate.
- High CRI Seoul Chips.
- IP65 waterproof driver, input voltage 100-277VAC.
- Output constant current lever can be adjusted through output cable with 1-10V.
- Easy to install and operate.
- Energy saving, long lifespan.
- Light is soft and uniform, safe to eyes.
- Instant start, NO humming,NO flickering.
Applications:
- Outdoor basketball court, tennis court.
- Badminton court, the football field.
- The school playground, stadium.
- Community leisure entertainment plaza, road lamp etc.
- Parking lot area, etc.
Specifications:
| Model No. |
LS-ESBV7240WCT3A1-50 |
| Input Power | 240W |
| Lumen |
30000-31200lm |
| Lumen Efficacy | 125-140lm/W |
| Color Temperature | 4000K, 5000K, 5700K |
| CRI | >70 |
| Viewing Angele | 150*80Degree (Type Ⅲ) |
| Input Voltage | 100-277V ac 50/60Hz |
| PF | ≥0.9 |
| THD | ≤20% |
| Driver Brand | China Brand Driver |
| Driver Model |
SS-200V-54B |
| Optional Accessory | Photocell / Surge Protector |
| LED Brand | Seoul |
| LED Type | SMD3030 |
| LED QTY | 252 pcs |
| Housing | Aluminum Alloy |
| Housing Color | Coffee color / Black / Customized |
| Waterproof rating | IP65 |
| Opertating Temperature | -40℃ TO 45℃ |
| Operating Humidity | 20%-90% RH |
| Storage Temperature | -40℃ TO 80℃ |
| Certificate | UL, DLC |
| Warranty | 5 years |
Photometrics:
Package:
| Stent Type | Lamp Net Weight | Carton Size | Qty / Carton | Gross Weight / Carton |
| AM | 7.9kg | 775×380×160mm | 1 | 9.1kg |
| DM | 8.4kg | 775×380×160mm | 1 | 9.6kg |
| YM | 7.6kg | 775×380×160mm | 1 | 8.8kg |
