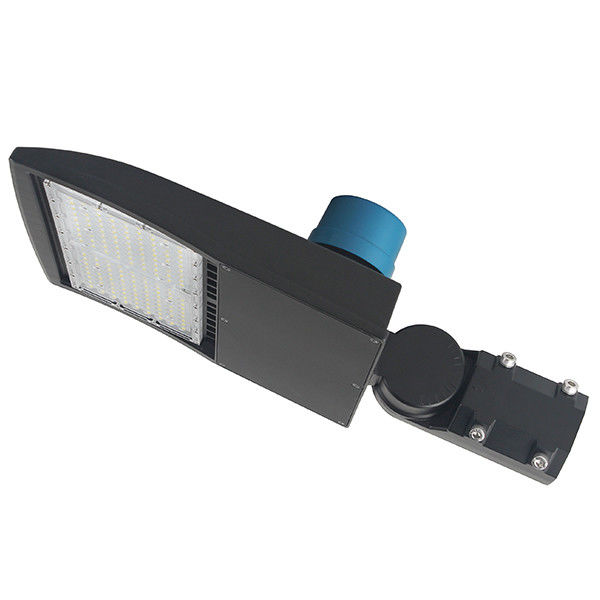

Trunnion Mount 12500LM IP65 Parking Lot Street Lights
Product Details:
Place of Origin: | China |
Brand Name: | LEDSION |
Certification: | UL, DLC |
Model Number: | LS-ESBC7150WCT3A1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Carton package, 1pcs/ctn, 25*16*7inch, 17lbs, 1850pcs/40HQ |
Delivery Time: | 1-2days |
Payment Terms: | T/T, CC, PP, Western Union |
Supply Ability: | 2500pcs |
Detail Information |
|||
Product Name: | Brown 100W LED Shoebox Light | Power: | 100W |
---|---|---|---|
Lumen: | 12500-14000LM | Waterproof Rating: | IP65 |
LED Qty: | 98 Pcs | Color Temperature(cct): | 5000K |
Input Voltage(v): | AC 100-277V | Driver Model: | SS-100VA-56B |
Working Lifetime(hour): | 50,000 Hrs | Lamp Body Material: | Aluminum Alloy |
Warranty(year): | 5 Years | ||
High Light: | 12500LM parking lot street lights,12500LM IP65 parking lot street lights,12500LM Trunnion Mount parking lot security lights |
Product Description
Slip Fitter/Direct Mount/Trunnion mount Photocell 100W Shoebox Light AC100-277V 5000K
About Our LED Shoebox Light
- High quality Brown 100W LED Shobox Lights in our USA Stock, With UL certification and DLC certification and 5 years warranty. There are 120V 480V and 3 types of Mounts(Slip Fitter/ Direct Mount/Yoke Mount) for you choose. What’s More we can arrange the shipment within 24 hours. If you like, the Photocell and motion sensor are achievable.
- For our LED Shoebox Lights, the material is the best die-casting aluminum housing, high CRI Seoul led chips, and UL Driver, anti-corrosion painting IP65 design.The lamp has first-class protection function. In addition, the lights with 20KV surge protection and High-performance illumination can lasts 50,000HRS. So the light has the following advantages,
- Replace 300-1000W MH/HPS
- No UV or IR in the beam
- Easy to install and operate
- Energy saving, long lifespan
- Light is soft and uniform, safe to eyes
- Instant start, NO flickering, NO humming
- Green and eco-friendly without mercury
- Output constant current lever can be adjusted through output cable with 1-10V
- High efficiency, up to 140lm/w. High Luminous flux up to 14,000lm, save more energy
Applications:
They can be used in Outdoor Basketball Court, Tennis Court, Badminton Court, the Football Field, The School Playground, Stadium, Community Leisure entertainment Plaza, Road lamp etc.
Specifications:
Product Name | LED Shoebox Light 100W with photocell |
Wattage | 100W |
Lumens Efficiency |
125-140LM/W |
Lunmen Output |
12500-14000LM |
Color Temperature | 5000K |
Light Distribution | Type Ⅲ |
Input Voltage | 100-277V ac 50/60Hz |
Mounting Bracket | AM, DM and YM |
Dimmable | 1-10V DIM |
Motion Sensor / Photocell | Available |
Finish | Brown |
Housing | Aluminum Alloy |
IP Rating | WET (IP65) |
Metal Halide Equal | 200W - 300W |
DLC Certification | Yes |
Warranty | 5 Years |
Life Hours | 50,000hrs |
Product size(mm):
AM: 529*333*92mm
DM: 568*333*160mm
YM: 464*333*89mm
Package:
Stent Type | Lamp Net Weight | Size | Qty / Carton | Gross Weight / Carton |
YM | 5.1KG | 585*385*160MM | 1 PC | 6KG |
AM | 5.4KG | 585*385*160 MM | 1 PC | 6.3 KG |
DM | 5.9 KG | 585*385*160 MM | 1 PC | 6.8KG |
A&D | 6.3KG | 585*385*160 MM | 1 PC | 7.2 KG |
Dallas Warehouse introduction:
Have our own warehouse in the United States, Located in Dallas, TX 75247. Professional aftersale team there to help customer handle any questions you meet. Warehouse area up to 50,000 square feet.
