Brown 140LM/W 12500LM Trunnion Mount LED Shoebox Light
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-ESBC7100WCT3A1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/ctn, 25*16*7inch, 17lbs, 1850pcs/40HQ |
| Delivery Time: | 1-2days |
| Payment Terms: | T/T, CC, PP, Western Union |
| Supply Ability: | 2500pcs |
|
Detail Information |
|||
| Product Name: | 100W LED Pole Lights | Power: | 100W |
|---|---|---|---|
| Lamp Luminous Efficiency(lm/w): | 125-140 LM/W | Waterproof Rating: | IP65 |
| Beam Angle: | Type 3 Angle | LED Brand: | SEOUL Brand |
| LED Qty: | 98 Pcs | Color Temperature(cct): | 40K, 50K, 57K |
| Input Voltage(v): | AC 100-277V | LED Driver: | China Brand Driver （Sosen Brand） |
| Driver Model: | SS-100VA-56B | Working Lifetime(hour): | 50,000 Hrs |
| Light Color: | Brown | Lamp Body Material: | Aluminum Alloy |
| Working Temperature(℃): | -40℃ - 50℃ | Warranty(year): | 5 Years |
| High Light: | 12500LM 140LM/W LED Shoebox Light,12500LM LED Shoebox Light,12500LM Brown shoebox parking lot lights |
||
Product Description

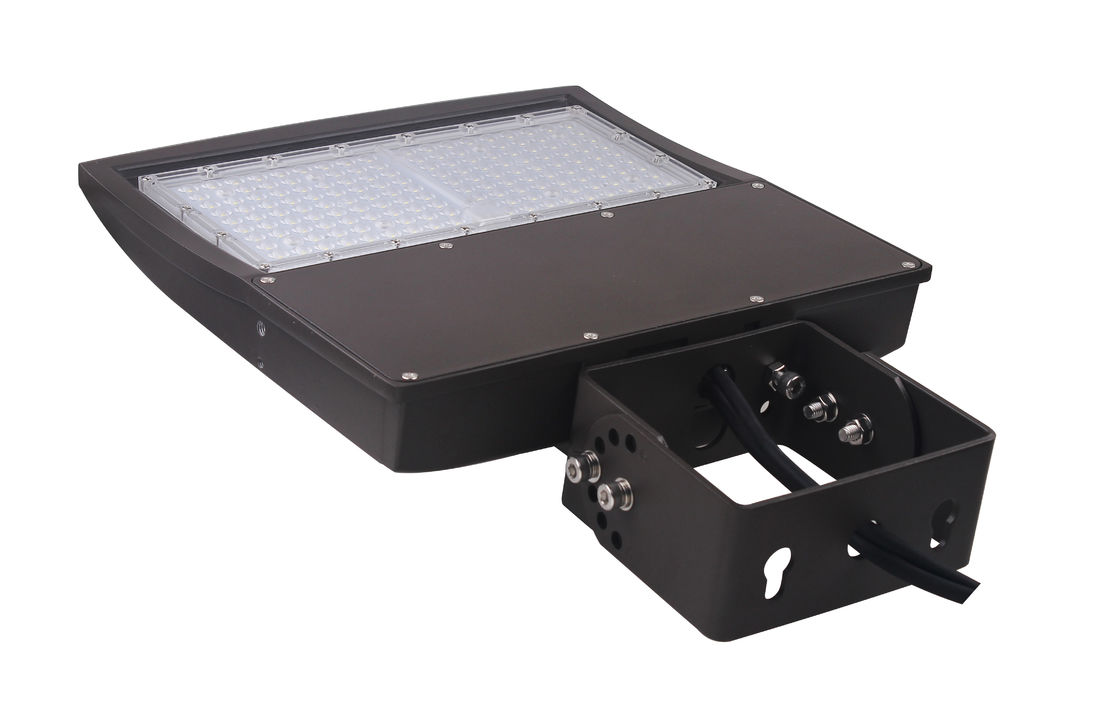

LED Parking Lot Lights With Trunnion mount 100W Shoebox Light AC100-277V 5000K
LEDSION LED Shoebox Lights are DLC UL listed, three mounts options, Slip Filter for round pole, Pole mount for square pole or round pole, Yoke Mount for wall installation. And Photocell available.
Advantage:
- Through the safety standard UL certification, and DLC certification.
- We use high CRI led chips, 98pcs Seoul chips.
- Photocell control, energy and money saving.
- Use dimmable driver with 1-10V dim,IP65 driver, input voltage 100-277V AC 50/60Hz.
- Installation and operation easily.
- 50,000 hours lifetime.
- Instant start, NO flickering, NO humming.
- No mercuty, green and eco-friendly for environment.
Applications:
They can be used in Outdoor Basketball Court, Tennis Court, Badminton Court, the Football Field, The School Playground, Stadium, Community Leisure entertainment Plaza, Road lamp etc.
After-Sale Service:
1. Quick reply on customers' questions;
2. If anything goes wrong with the products' quality, we will replace for you free
3. Make you a happy ordering.
Specifications:
| Product Name | LED Shoebox Light 100W with photocell |
| Wattage | 100W |
| Lumens Efficiency |
125-140LM/W |
| Lunmen Output |
12500-14000LM |
| Color Temperature | 5000K |
| Light Distribution | Type Ⅲ |
| Input Voltage | 100-277V ac 50/60Hz |
| Mounting Bracket | AM, DM and YM |
| Dimmable | 1-10V DIM |
| Motion Sensor / Photocell | Available |
| Finish | Brown |
| Housing | Aluminum Alloy |
| IP Rating | WET (IP65) |
| Metal Halide Equal | 200W - 300W |
| DLC Certification | Yes |
| Warranty | 5 Years |
| Life Hours | 50,000hrs |
Photometrics:
Package:
| Stent Type | Lamp Net Weight | Size | Qty / Carton | Gross Weight / Carton |
| YM | 5.1KG | 585*385*160MM | 1 PC | 6KG |
| AM | 5.4KG | 585*385*160 MM | 1 PC | 6.3 KG |
| DM | 5.9 KG | 585*385*160 MM | 1 PC | 6.8KG |
| A&D | 6.3KG | 585*385*160 MM | 1 PC | 7.2 KG |
