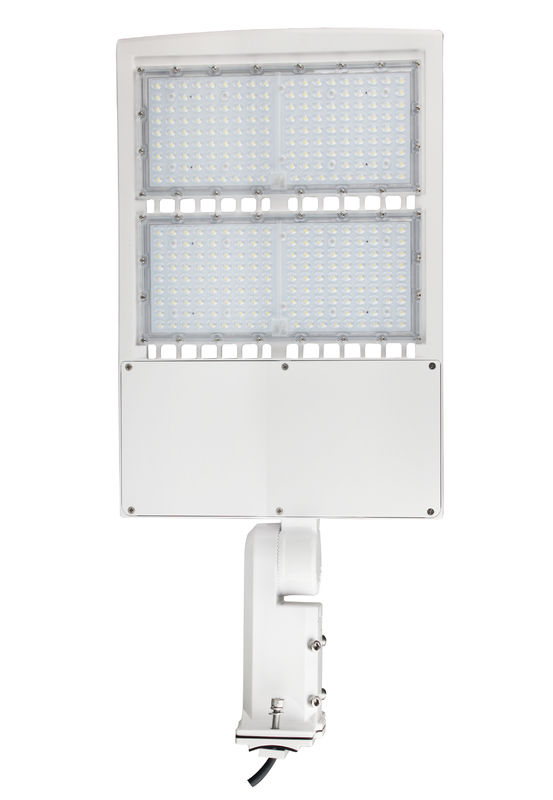

Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-ESBV7300WCT3A1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/CTN, packing size: 32*15*7inch，weight: 22lbs |
| Delivery Time: | 1-2 days |
| Payment Terms: | T/T, CC, PP, Check, Western Union |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Product Name: | 300W Shoebox Light | Power: | 300W |
|---|---|---|---|
| Light Source: | Seoul SMD3030 | Lamp Luminous Flux(lm): | 130lm/W |
| Lamp Luminous Efficiency(lm/w): | 26000lm | Ip Rating: | IP65 |
| Working Temperature(℃): | -40 - 50℃ | Color Temperature(cct): | 4000K 5000K 5700K |
| Beam Angle: | Type 3 | CRI: | >70Ra |
| Lamp Body Material: | Die-casing Aluminum Housing | Working Lifetime(hour): | 50000 |
| Input Voltage(v): | 480Vac | Application: | Parking Lot,square, Street |
| Warranty(year): | 5 Years | Certification: | UL, DLC |
| Housing Color: | White | ||
| High Light: | LEDSION 26000LM LED Shoebox Light,LEDSION White LED Shoebox Light,LEDSION 5000K outdoor parking lot lights |
||
Product Description
Outdoor lighting 300W LED Shoebox Light 5000K 480V White Color With 5 Years Warranty
Advantage:
- UL, DLC certificate.
- Seoul Chip, high CRI.
- IP65 driver, input voltage 480VAC.
- Output constant current lever can be adjusted through output cable with 1-10V.
- No UV or IR in the beam.
- Easy to install and operate.
- Energy saving, long lifespan.
- Light is soft and uniform, safe to eyes.
- Instant start, NO flickering, NO humming.
- Green and eco-friendly without mercury.
Specifications:
| OPTICAL | Input Power | 300W |
| Lumen | 37000-42000LM | |
| Lumen Efficacy | 125-140 LM/W | |
| Color Temperature | 4000K, 4500K, 5000K, 5700K | |
| CRI | >70 | |
| Viewing Angle | 150*85 Degree(Type Ⅲ) | |
| ELECTRICAL | Input Voltage | 480V |
| PF | ≥0.9 | |
| THD | ≤20% | |
| Driver Model | China Brand Driver SS-320V-54B | |
| Optional Accessory | Photocell / Surge protector/ Motion sensor | |
| MATERIALS | LED Brand | SEOUL |
| LED Type | SMD3030 | |
| LED QTY | 308 PCS | |
| Housing | Aluminum Alloy | |
| Housing Color | white/Brown/ Black / Customized | |
| Waterproof Rating | WET(IP65) | |
| OTHERS | Operating Temperature | -40℃ TO 45℃ |
| Operating Humidity | 10％-90％ RH | |
| Storage Temperature | -40℃ TO 80℃ | |
| Storage Humidity | 10％-95％ RH | |
| Warranty Time | 5 Years |
Photometrics:
Applications:
- Outdoor basketball court, tennis court.
- Badminton court, the football field.
- The school playground, stadium.
- Community leisure entertainment plaza, road lamp etc.
Product Dimension (mm):
Package:
| Stent Type | Lamp Net Weight | Size | Qty / Carton | Gross Weight / Carton |
| AM | 8.7 KG | 775 x 380 x 160mm | 1 | 9.9 KG |
| DM | 9.2 KG | 775 x 380 x 160mm | 1 | 10.4 KG |
| YM | 8.4 KG | 775 x 380 x 160mm | 1 | 9.6 KG |
FAQ:
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: If our warehouse have the sample item you need,can ship out at the same day after payment.
If special sample order from factory, 7-10days sample time.
Q3. How do you ship the goods ?
A: By express or truck with pallet from USA mainland, by express, by air or by sea from China factory.
Q4. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on products ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Customer image:
Dallas Warehouse Introduction:
Ledsion Lighting have its own warehouse in the United States, Located in Dallas, TX 75247. Warehouse area up to 50,000 square feet.
We have professional logistic team and after-saels service team there. Can help you to ship out the goods in the same day and provide high quality after-sales service.
