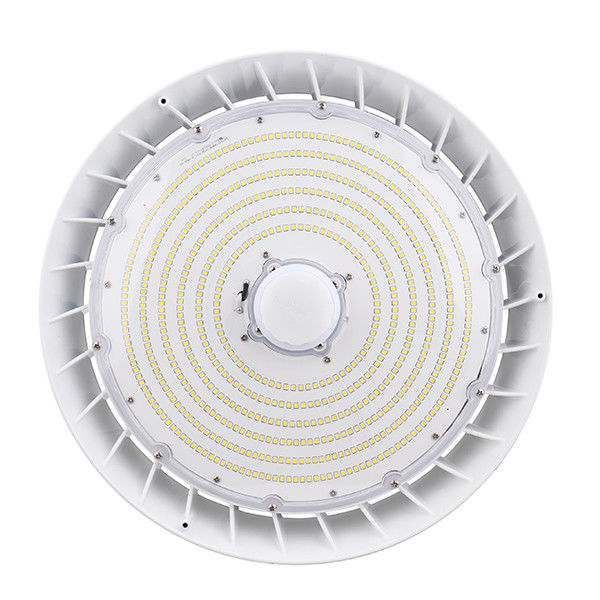

White 27000LM 5000K 100V LED UFO High Bay Light 200W
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS7EHB200WBCPD1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 2pcs/ctn, 17*17*17inch, 18.5lbs, 1636pcs/40HQ , 1396Ppcs/40GP, 974pcs/20GP |
| Delivery Time: | 1-2days |
| Payment Terms: | T/T, CC, Check, PP, Western Union |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Product Name: | 7G 200W LED UFO High Bay Light | Model No.: | LS7EHB200WBCPD1 |
|---|---|---|---|
| Input Voltage: | 100-277V Ac 50/60Hz | LED Chips: | SMD2835 |
| LED Qty: | 560PCS | CRI: | >80Ra |
| Lumen Efficiency: | 130-146lm/W | Lumens Output: | 27000-29000LM |
| Viewing Angle: | 110° | Working Temperature: | -30℃ - +45℃ |
| Storage Temperature: | -40℃ TO 80℃ | Power Factor: | >0.9 |
| IP Rating: | IP 65 | Color: | White / Black |
| Warranty: | 5 Years | Certificate: | UL DLC |
| High Light: | 27000LM LED UFO High Bay Light,200W LED UFO High Bay Light,White high bay led lights 200w |
||
Product Description
7G LED UFO Highbay light White 200W 1-10V Dim 5000K 100-277Vac 130lm/W
Main Features:
- Safety UL certification ans DLC premium.
- Input voltage 100-277Vac
- No UV or IR in the beam; Green and eco-friendly without mercury
- Energy saving, long lifespan
- Easy to install and operate; Instant start, NO flickering, NO humming
- Output constant current lever can be adjusted through output cable with 1-10V PWM Resistance three in one dimming.
Applications:
1. Factories, industrial production workshop, warehouse;
2. Gym, stadiums, golf courses,
3. Commercial establishments, overpasses, outdoor advertising board, landmarks;
4. Stage, yard, garden, lawn, park, plaza;
5. Supermarket, shopping mall, exhibition hall;
6. Ships, airports, subways, gas station, the train station, highway toll station, dock
Basic Specification:
Product Specifications
| Product name | LED High Bay Light |
| Part No | LS7EHB200WBCPD1 |
| Dimension |
Ф350x210 mm or Ф350x235 mm |
Technical Characteristic
| Color temperature | 4000K, 5000K, 5700K |
| CRI | >80 |
| Cover | Clear PC |
| Lumen |
27000-29000LM |
| Viewing Angle | 110° |
| Input Power | 200W |
| Input Voltage | 100-277Vac 50/60Hz |
| Driver Brand |
China Brand Driver (1-10V/PWM / Resistance three in one dimming ) |
| Optional Accessory | Motion Sensor / Surge-Protective Device |
| PF | >0.9 |
| Waterproof Rating | IP65 |
Materials
| LED Type | 2835(0.5W) |
| LED QTY | 560 PCS |
| Housing | Aluminum |
| Housing color | Any color |
| Cover | PC cover |
Others
| Operating Temperature | -40℃ TO 50℃ |
| Operating Humidity | 10％-90％ RH |
| Storage Temperature | -40℃ TO 80℃ |
| Storage Humidity | 10％-95％ |
| Application | Indoor |
| Safety Certification | UL DLC |
| Warranty Time | 5 Years |
Photometrics:
Product Dimension(mm):
| Item | With open hook | with U bracket |
| 200W | Φ350×210mm | Φ350×235mm |
Package:
| Size | Qty / Carton | Gross Weight / Carton | |
| inner box | 400*400*210mm | 1 PC | 5.4 KG |
| outer box | 425*425*460mm | 2 PC | 11.4 |
FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2009 and we have our own factory, supply duable super quality items and reliable after-sale service.
2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.
3. How long will it spend for our orders to be sent out?
It takes 3-5 days for samples at common requirements, and 10-15 working days for big order such as 3000pcs led high bay light.
4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for this led high bay light, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
Warehouse introduction:
Ledsion Ligting has its own warehouse in Dallas, TX 75247, USA. Warehouse area up to 50,000 square feet. We have professional person responsible for warehouse operation. Professional after-sales service, and professional logistic team, can send out all the goods in the same day customer ordered.
