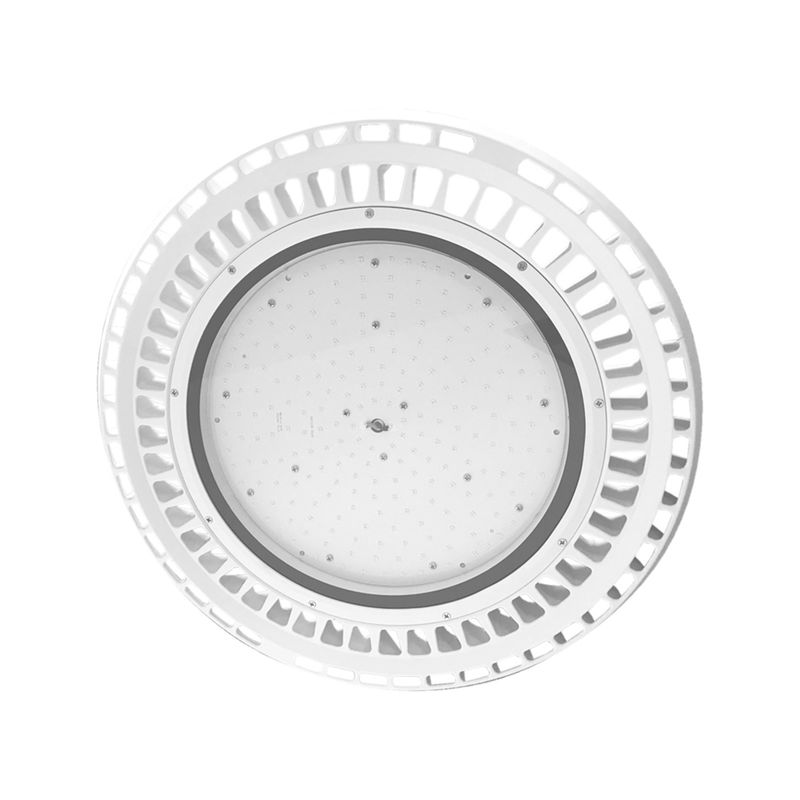

DLC 120V IP65 32000LM 200 Watt LED UFO High Bay Light
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | ETL,cETL, DLC |
| Model Number: | LS-5EHB200W-50K-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/ctn, 17*17*8inch, 14lbs, 2300pcs/container |
| Delivery Time: | 1-2days |
| Payment Terms: | T/T, CC, Check, PP, Western Union |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Product Name: | LED UFO High Bay Light | Voltage: | 120V |
|---|---|---|---|
| Efficiency: | 160LM/W | Lumens Output: | 32000LM |
| LED Chips: | SMD2835 | Color Temperature: | 5000K |
| Input Voltage: | 100-277V Ac 50/60Hz (200-480V Available) | Light Distribution Type: | 120D |
| Color: | White/Black | Working Temperature: | -30-+45℃ |
| Storage Temperature: | -40℃ TO 80℃ | Housing: | Aluminum |
| Waterproof Rating: | IP65 | Warranty Time: | 5 Years |
| High Light: | DLC LED UFO High Bay Light,120V LED UFO High Bay Light,IP65 200 watt ufo high bay led light |
||
Product Description
White 200w 160Lm/W UFO LED Lights stock in us 5000k dimmable
Main Features:
- Fins design, advective holes and grooves in each fin, good for heat dissipation;
- The wide input voltage range AC100-277V & AC200V-480V (1-10V dimming); Sosen driver, SMD2835 LED as light source;
- Professional light distribution technique, high light reflectivity reflectors, 60 /90 /110 beam angle available; The lens pass rate is over 90%;
- Light weight and small size, save about half shipping costs.
Basic Specification:
| Product name | LED UFO Highbay light 200W with White color |
| Wattage | 200W |
| Lumens per Watt | 160lm/W |
| Color Temperature | 5000K |
| Beam Angle | 120 Degree |
| Lense | Plastic Lens |
| Voltage | 100-277V ac 50/60Hz (200-480V available) |
| Mounting | Open Hook / U Bracket / Conduit Pipe |
| Dimmable | Yes, 1-10V dim |
| Motion Sensor | Available |
| Finish | White |
| Housing | Die-Casting Aluminum+PC |
| IP Rating | IP65 |
|
Driver Brand |
China Brand Driver(1-10V dim) |
|
PF |
0.93 |
| Warranty | 5 Years |
| Life Hours | 50,000 |
|
Operating Temperature |
-40℃ TO 50℃ |
|
Operating Humidity |
10％-90％ RH |
|
Storage Temperature |
-40℃ TO 80℃ |
|
Storage Humidity |
10％-95％ |
Photometrics:
Applications:
1. Industrial application: Warehouse, Factory etc
2. Commercial application: Exhibition Room, Gas Station, Supermarket etc.
Product dimension (mm):
200W: Φ 400×186mm
Package:
| Model | Caton size | Qty / Carton | Lamp Net Weight | Gross Weight |
| LS-5EHB200W-50K-B | 43×43×20cm | 1 pcs | 5.4 kgs | 5.8 kgs |
| LS-5EHB200WHV-50K-B | 43×43×20cm | 1 pcs | 5.4 kgs | 5.8 kgs |
FAQ:
Warranty:
5 years warranty.
Delivery time:
1. Samples: 1-2 working days from USA warehouse, 5-7 working days from China factory.
2. Bulk order: 1-2 working days from USA warehouse, 15-20 working days from China factory.
Payment:
1. Samples: Bank TT, 100% payment in advance;
2. Bulk order: Bank TT, 100%payment in advance from USA warehouse; 30% deposit and balance 70% settled before shipment from China factory.
Quality Control:
100% of the lamps will be tested its quality reliability, and we will also test its;
Each lamp should pass all these QC procedures before shipping to customer.
After-Sale Service:
1. Quick reply on customers' questions;
2. If anything goes wrong with the products' quality, we will replace for you free;
3. Make you a happy ordering.
Warehouse introduction:
Ledsion Ligting has its own warehouse in Dallas, TX 75247, USA. Warehouse area up to 50,000 square feet. We have professional person responsible for warehouse operation. Professional after-sales service, and professional logistic team, can send out all the goods in the same day customer ordered.
