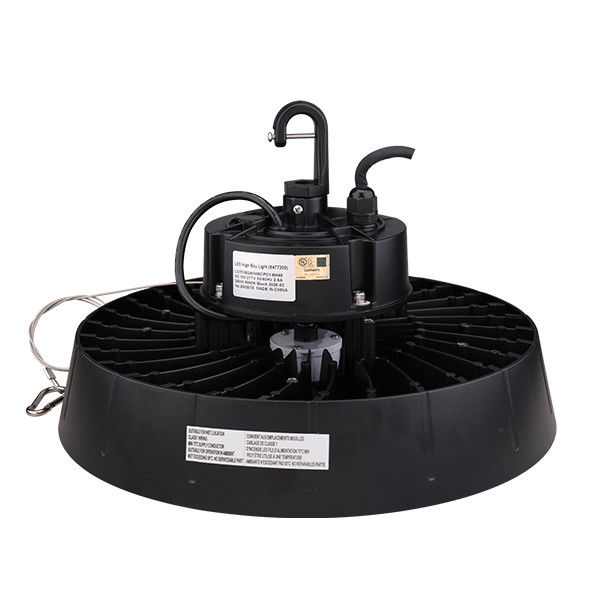

35000LM 7G 130LM/W 240W 1-10V DIM LED UFO High Bay Light
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS7EHB240WBCPD1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 2pcs/ctn, 17*17*18.5inch, 25.6lbs, 1636pcs/40HQ , 1396Ppcs/40GP, 674pcs/20GP |
| Delivery Time: | 1-2days |
| Payment Terms: | T/T, CC, Check, PP, Western Union |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Product Name: | 7G 240W LED UFO High Bay Light | Model No.: | LS7EHB240WBCPD1 |
|---|---|---|---|
| Lumen Efficiency: | 130-146lm/W | LED Chips: | SMD 2835 |
| LED Qty: | 680 PCS | CRI: | >80Ra |
| Lumens Output: | 33000-35000LM | Input Voltage: | 100-277V Ac 50/60Hz |
| Viewing Angle: | 110° | Working Temperature: | -30-+45℃ |
| Storage Temperature: | -40℃ TO 80℃ | Power Factor: | >0.9 |
| IP Rating: | IP65 | Color: | Black / White |
| Warranty: | 5 Years | Certificate: | UL, DLC |
| High Light: | 35000LM LED UFO High Bay Light,130LM/W LED UFO High Bay Light,7G high bay flood light |
||
Product Description
7G 130lm/W LED UFO Highbay light Black 240W 5000K 100-277Vac 1-10V dim
Main Features:
- UL DLC certificate
- Input voltage 100-277Vac
- No UV or IR in the beam
- Easy to install and operate
- Energy saving, long lifespan
- Instant start, NO flickering, NO humming
- Green and eco-friendly without mercury
- Output constant current lever can be adjusted through output cable with 1-10V PWM Resistance three in one dimming.
Applications:
1. Food Warehouse, factory and workshops;
2. Highway toll station and gas station;
3. Exhibition hall;Gymnasium and supermarkets, etc.
Basic Specification:
Product Specifications
| Product name | LED High Bay Light |
| Part No | LS7EHB240WBCPD1 |
| Dimension |
Ф350x210 mm or Ф350x235 mm |
Technical Characteristic
| Color temperature | 4000K 5000K 5700K |
| CRI | >80 |
| Cover | Clear PC |
| Lumen |
33000-35000LM |
| Viewing Angle | 110° |
| Input Power | 240W |
| Input Voltage | 100-277Vac 50/60Hz |
| Driver Brand | China Brand Driver (1-10V/PWM/Resistance three in one dimming ) |
| Optional Accessory | Motion Sensor/Surge-Protective Device |
| PF | >0.9 |
| Waterproof Rating | WET (IP65) |
Materials
| LED Type | 2835(0.5W) |
| LED QTY | 680 PCS |
| Housing | Aluminum |
| Housing color | Any color |
| Cover | PC cover |
Others
| Operating Temperature | -40℃ TO 50℃ |
| Operating Humidity | 10％-90％ RH |
| Storage Temperature | -40℃ TO 80℃ |
| Storage Humidity | 10％-95％ |
| Application | Indoor |
| Safety Certification | UL cUL |
| Warranty Time | 5 Years |
Photometrics:
Product Dimension(mm):
| Item | With open hook | with U bracket |
| 240W | Φ350×210mm | Φ350×235mm |
Package:
| Size | Qty / Carton | Gross Weight / Carton | |
| inner box | 400*400*210mm | 1 PC | 5.4 KG |
| outer box | 425*425*460mm | 2 PC | 11.6 KG |
FAQ:
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:From USA warehouse sample and mass product need 1-2 days,
From China factory sample needs 5-7 working days, mass order need around 15-20 working days .
Q3. How do you ship the goods ?
A: By express(DHL, UPS or FedEx), by air, by sea .
Q4. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
Q5. Is it OK to print my logo on products ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
