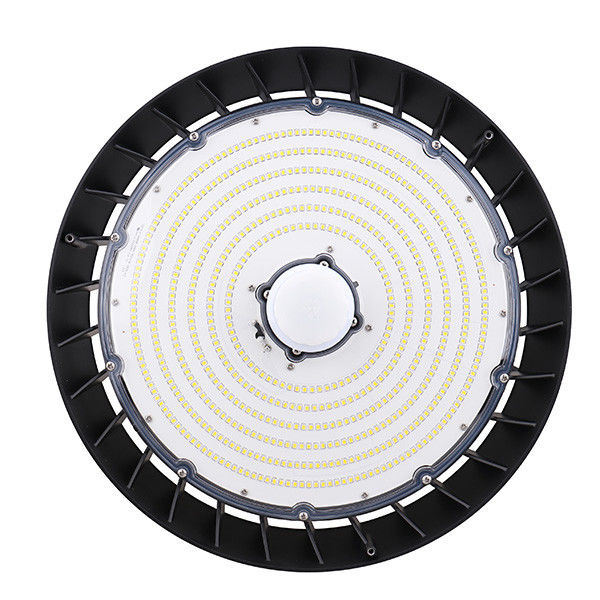

29000LM 200 Watt LED High Bay Light for Shopping Mall Lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS7EHB200WBCPD1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 2pcs/ctn, 17*17*17inch, 18.5lbs, 1636pcs/40HQ , 1396Ppcs/40GP, 974pcs/20GP |
| Delivery Time: | 1-2days |
| Payment Terms: | T/T, CC, Check, PP, Western Union |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Product Name: | 7G 200W LED UFO High Bay Light | Model No.: | LS7EHB200WBCPD1 |
|---|---|---|---|
| Input Voltage: | 100-277Vac 50/60Hz | Lumen Efficiency: | 130-146lm/W |
| Lumens Output: | 27000-29000LM | LED Chips: | SMD2835 |
| LED Qty: | 560 PCS | CRI: | >80Ra |
| Viewing Angle: | 110D | Working Temperature: | -30℃-+45℃ |
| Storage Temperature: | -40℃ TO 80℃ | Power Factor: | >0.9 |
| IP Rating: | WET IP65 | Warranty: | 5 Years |
| Certificate: | UL, DLC | ||
| High Light: | 29000LM 200 watt led high bay light,Ledsion 29000LM led high bay light,Ledsion 200 watt high bay led light |
||
Product Description
7G LED UFO Highbay light 130lm/W Black 200W 1-10V dim 5000K 100-277Vac
Main Features:
- UL DLC certificate
- Input voltage 100-277Vac
- No UV or IR in the beam
- Easy to install and operate
- Energy saving, long lifespan
- Instant start, NO flickering, NO humming
- Green and eco-friendly without mercury
- Output constant current lever can be adjusted through output cable with 1-10V PWM Resistance three in one dimming.
Applications:
1. Gym, stadiums, golf courses,
2. Commercial establishments, overpasses, outdoor advertising board, landmarks;
3. Stage, yard, garden, lawn, park, plaza;
4. Supermarket, shopping mall, exhibition hall;
5. Ships, airports, subways, gas station, the train station, highway toll station, dock
6. Factory, office, meeting room, conference hall, storeroom, etc.
Basic Specification:
Product Specifications
| Product name | LED High Bay Light |
| Part No | LS7EHB200WBCPD1 |
| Dimension |
Ф350x210 mm or Ф350x235 mm |
Technical Characteristic
| Color temperature | 4000K 5000K 5700K |
| CRI | >80 |
| Cover | Clear PC |
| Lumen |
27000-29000LM |
| Viewing Angle | 110D |
| Input Power | 200W |
| Input Voltage | 100-277VAC 50/60Hz |
| Driver Brand |
China Brand Driver (1-10V/PWM/Resistance three in one dimming ) |
| Optional Accessory | Motion Sensor/Surge-Protective Device |
| PF | >0.9 |
| Waterproof Rating | WET (IP65) |
Materials
| LED Type | 2835(0.5W) |
| LED QTY | 560 PCS |
| Housing | Aluminum |
| Housing color | Any color |
| Cover | PC cover |
Others
| Operating Temperature | -40℃ TO 50℃ |
| Operating Humidity | 10％-90％ RH |
| Storage Temperature | -40℃ TO 80℃ |
| Storage Humidity | 10％-95％ |
| Application | Indoor |
| Safety Certification | UL, DLC |
| Warranty Time | 5 Years |
Photometrics:
Product Dimension(mm):

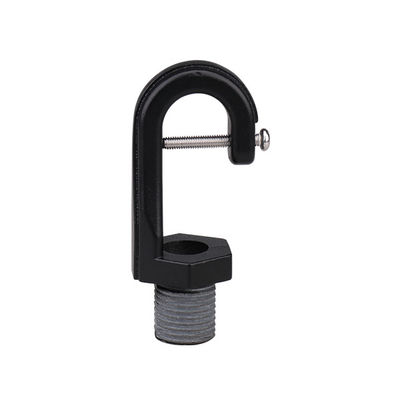

| Item | With open hook | with U bracket |
| 200W | Φ350×210mm | Φ350×235mm |
Package:
| Size | Qty / Carton | Gross Weight / Carton | |
| inner box | 400*400*210mm | 1 PC | 5.4 KG |
| outer box | 425*425*460mm | 2 PC | 11.4 |
FAQ:
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 30 days for order quantity more .
Q3. How do you ship the goods ?
A: By express, by air, by sea .
Q4. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
Q5. Is it OK to print my logo on products ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Warehouse introduction:
Ledsion Ligting has its own warehouse in Dallas, TX 75247, USA. Warehouse area up to 50,000 square feet. We have professional person responsible for warehouse operation. Professional after-sales service, and professional logistic team, can send out all the goods in the same day customer ordered.
