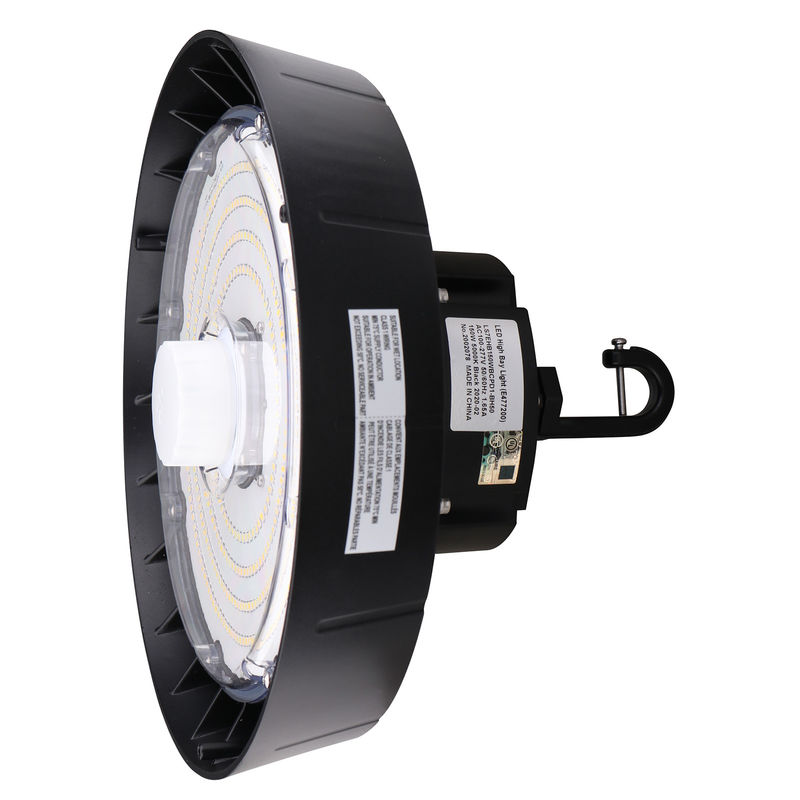

Open Hook 22000LM 150W 277V LED UFO High Bay Light
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS7EHB150WBCPD1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 2pcs/ctn, 14.6*14.6*17inch, 18lbs, 2310pcs/40HQ , 1970Ppcs/40GP, 950pcs/20GP |
| Delivery Time: | 1-2days |
| Payment Terms: | T/T, CC, Check, PP, Western Union |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Product Name: | 7G 150W LED UFO High Bay Light | Model No.: | LS7EHB150WBCPD1 |
|---|---|---|---|
| Lumen Efficiency: | 130-146lm/W | LED Chips: | SMD 2835 |
| LED Qty: | 400 PCS | CRI: | >80Ra |
| Lumens Output: | 19500-22000LM | Input Voltage: | 100-277V Ac 50/60Hz |
| Viewing Angle: | 110° | Working Temperature: | -30-+45℃ |
| Storage Temperature: | -40℃ TO 80℃ | Power Factor: | >0.9 |
| IP Rating: | IP65 | Color: | Black / White |
| Warranty: | 5 Years | Certificate: | UL, DLC |
| Highlight: | 22000LM LED UFO High Bay Light,150W LED UFO High Bay Light,Open Hook 150 watt led high bay light |
||
Product Description
7G LED UFO Highbay light with open hook 150W 130lm/W 1-10V dim 5000K 100-277Vac
Main Features:
- UL DLC certificate
- Input voltage 100-277Vac
- No UV or IR in the beam
- Easy to install and operate
- Energy saving, long lifespan
- Instant start, NO flickering, NO humming
- Green and eco-friendly without mercury
- Output constant current lever can be adjusted through output cable with 1-10V PWM Resistance three in one dimming.
Applications:
- Food Warehouse, factory and workshops;
- Highway toll station and gas station;
- Exhibition hall;Gymnasium and supermarkets, etc.
After-Sale Service:
1. Quick reply on customers' questions;
2. If anything goes wrong with the products' quality, we will replace for you free
3. Make you a happy ordering.
Basic Specification:
Product Specifications
| Product name | LED High Bay Light |
| Part No | LS7EHB150WBCPD1 |
| Dimension | Ф290x192 mm or Ф290x205 mm |
Technical Characteristic
| Color temperature | 4000K 4500K 5000K 5700K |
| CRI | >80 |
| Cover | Clear PC |
| Lumen | 19500-22000LM |
| Viewing Angle | 110° |
| Input Power | 150W |
| Input Voltage | 100-277Vac 50/60Hz |
| Driver Brand | China Brand Driver (1-10V/PWM/Resistance three in one dimming ) |
| Optional Accessory | Motion Sensor/Surge-Protective Device |
| PF | >0.9 |
| Waterproof Rating | WET (IP65) |
Materials
| LED Type | 2835(0.5W) |
| LED QTY | 400 PCS |
| Housing | Aluminum |
| Housing color | Any color |
| Cover | PC cover |
Others
| Operating Temperature | -40℃ TO 50℃ |
| Operating Humidity | 10％-90％ RH |
| Storage Temperature | -40℃ TO 80℃ |
| Storage Humidity | 10％-95％ |
| Application | Indoor |
| Safety Certification | UL cUL |
| Warranty Time | 5 Years |
Photometrics:
Product Dimension(mm):
| Item | With open hook | with U bracket |
| 150W | Φ290×192mm | Φ290×205mm |
Package:
| Size | Qty / Carton | Gross Weight / Carton | |
| inner box | 345x345x195mm | 1 PC | 4.0 KG |
| Outer box | 370×370×430mm | 2 PC | 8.1 KG |
Warehouse introduction:
Ledsion Ligting has its own warehouse in Dallas, TX 75247, USA. Warehouse area up to 50,000 square feet. We have professional person responsible for warehouse operation. Professional after-sales service, and professional logistic team, can send out all the goods in the same day customer ordered.
