Motion Sensor 40500LM Commercial Led Parking Lot Lights IP65 5700K
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-ESBV8300W27V50K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/CTN, packing size: 40*16*6inch，weight: 28lbs, 1030pcs/40HQ |
| Delivery Time: | 1-2 days |
| Payment Terms: | T/T, CC, PP, Check |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Product Name: | 300W LED Shoebox Light | Power: | 300W |
|---|---|---|---|
| Light Source: | Lumileds | Lamp Luminous Flux(lm): | 135LM/W |
| Lamp Luminous Efficiency(lm/w): | 40500LM | Ip Rating: | IP65(WET) |
| Working Temperature(℃): | -40℃ - 50℃ | Color Temperature(cct): | 5000K，4000K 5700K Available |
| Beam Angle: | 150*85D | CRI: | >70Ra |
| LED Driver Brand: | Inventronic | Working Lifetime(hour): | 50,000 H |
| Input Voltage(v): | 120-277Vac | Mounting: | Direct Mount,Slip Fitter |
| Warranty(year): | 5 Years | Certification: | UL,DLC |
| High Light: | 40500LM commercial led parking lot lights,IP65 commercial led parking lot lights,5700K motion sensor parking lot lights |
||
Product Description

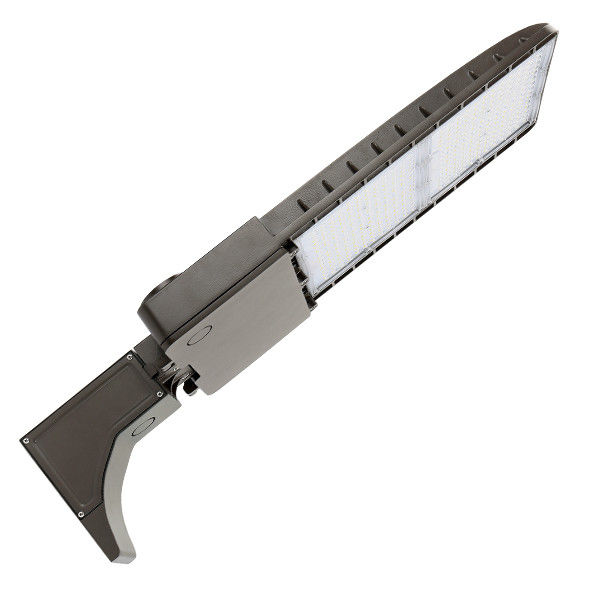

9G LED Shoebox Light with Direct Mount 300W 120-277VAC Brwon Housing IP65
Specifications:
Construction:
- Rugged one-piece, die-cast aluminum housing secures the thermally conductive LED panel and electrical chamber.
- Low profile, 3G vibration rated compact design minimizes wind load requirements.
- Housing is completely sealed against moisture and environmental contaminants.
Optics:
- Available in IES Type III, IV, V distributions.
- Light engines are available in standard 4000 K and 5000 K (70 CRI) configurations.
- Scalable Lumen Packages from 39000 to 42,000 Lumens replaces up to 1000W Metal Halide.
- Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
- For the ultimate level of spill light control, an optional house-side shield accessory can be field or factory installed.
- The optics can conform to dark sky requirement.
Electrical:
- Universal 120-277 VAC or 347-480 VAC input voltage.
- Standard with 1-10V dimming driver(s).
- THD: ≤20%
- Power Factor: ≥90%
Controls:
- Optional occupancy sensor.
- Optional Photocell.
Ambient Temperature:
- Ambient operating temperature -40˚ C to 45˚ C (-40℉ to 113℉).
Installation:
- Suitable for mounting heights ranging from 26-50’ in area lighting applications.
- Round pole, Square pole, slipfitter and wall mount are available.
- The design can be operated by one person to install the whole lamp.
Lifespan:
- Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Finish:
- It's available in black or optional dark bronze, silvery gray or white.
Certifications:
- UL wet location listed and DLC qualified
| Model No. | LS-ESBV8300W27V50K |
| Input Power | 300W |
| Lumen | ≥39600 LM |
| Lumen Efficacy | ≥132 LM/W |
| Color Temperature | 4000K, 5000K |
| CRI | >70 |
| Viewing Angle | Type Ⅲ, TypeⅣ, Type Ⅴ |
| Input Voltage | 120-277VAC 50/60Hz |
| PF | ≥0.9 |
| THD | ≤20% |
| Driver Brand | Inventronic |
| Optional Accessory | Photocell / Motion sensor |
| LED Brand | Lumileds |
| LED Type | 3030 |
| LED QTY | 336 PCS |
| Housing | Aluminum Alloy |
| Housing Color | Black / Dark Bronze/ Silver Gray /white |
| Waterproof Rating | WET(IP65) |
| Operating Temperature | -40℃ TO 45℃ |
| Operating Humidity | 20％-90％ RH |
| Storage Temperature | -40℃ TO 80℃ |
| Storage Humidity | 10％-95％ RH |
| Warranty Time | 5 Years |
Photometrics:
LEDSION offers a complete set of optical systems to meet every site lighting requirement. These systems provide remarkable flexibility in precisely matching light distribution patterns to specific site requirements.
- Type 3 optics produce an asymmetrical pattern that directs the majority of the light forward and equally on both sides of the luminaire. In a back-to-back configuration, it creates a rectangular pattern which can extend pole spacings.
- Type 4 is suitable for applications where light is primarily required forward with minimal backlight. Typical installations include perimeter poles.
-
Type 5 optics produce a symmetrical square distribution pattern that distributes light equally on all sides of the luminaire. Type 5luminaires is universal for most area lighting applications
Applications:
Auto dealerships, parking lots, walkways, roadways, campuses, facade lighting, grocery stores and other public areas.
Product Dimension:
AM
DM
Moungting:
Dallas warehouse introduction:
Ledsion Lighting have its own warehouse in the United States, Located in Dallas, TX 75247. Warehouse area up to 50,000 square feet.
We have professional logistic team and after-saels service team there. Can help you to ship out the goods in the same day and provide high quality after-sales service.
