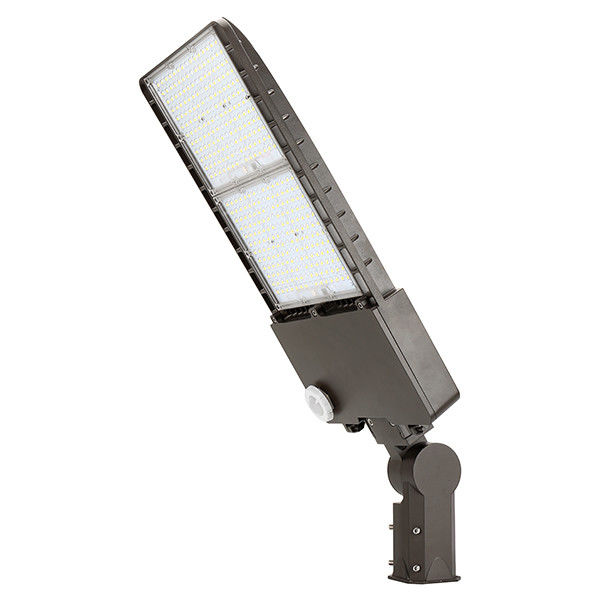

DLC 135LM/W 300W 120V IP65 LED Parking Lot Flood Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-ESBV8300W27V50K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/CTN, packing size: 40*16*6inch，weight: 28lbs, 1030pcs/40HQ |
| Delivery Time: | 1-2 days |
| Payment Terms: | T/T, CC, PP, Check |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Product Name: | 300W LED Shoebox Light | Power: | 300W |
|---|---|---|---|
| Light Source: | Lumileds | Lamp Luminous Flux(lm): | 135LM/W |
| Lamp Luminous Efficiency(lm/w): | 60750LM | Ip Rating: | IP65(WET) |
| Working Temperature(℃): | -40℃ - 50℃ | Color Temperature(cct): | 5000K，4000K 5700K Available |
| Beam Angle: | 150*85D | CRI: | >70Ra |
| LED Driver: | Meanwell HLG-240H-48B*2PCS | Working Lifetime(hour): | 50,000 H |
| Input Voltage(v): | 200-480Vac | Mounting: | Slip Fitter, Direct And Yoke Mount |
| Warranty(year): | 5 Years | Certification: | UL,DLC |
| High Light: | 135LM/W led parking lot flood lights,120V led parking lot flood lights,DLC 300w led parking lot light |
||
Product Description
9G LED Shoebox Light with Slip Fitter 300W 120-277VAC Brwon Housing IP65
Specifications:
- Rugged one-piece, die-cast aluminum housing secures the thermally conductive LED panel and electrical chamber.
- Low profile, 3G vibration rated compact design minimizes wind load requirements.
- Housing is completely sealed against moisture and environmental contaminants.
- Available in IES Type III, IV, V distributions.
- Light engines are available in standard 4000 K and 5000 K (70 CRI) configurations.
- Scalable Lumen Packages from 39000 to 42,000 Lumens replaces up to 1000W Metal Halide.
- Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
- For the ultimate level of spill light control, an optional house-side shield accessory can be field or factory installed.
- The optics can conform to dark sky requirement.
- Universal 120-277 VAC or 347-480 VAC input voltage.
- Standard with 1-10V dimming driver(s).
- THD: ≤20%
- Power Factor: ≥90%
- Optional occupancy sensor.
- Optional Photocell.
- Ambient operating temperature -40˚ C to 45˚ C (-40℉ to 113℉).
- Suitable for mounting heights ranging from 26-50’ in area lighting applications.
- Round pole, Square pole, slipfitter and wall mount are available.
- The design can be operated by one person to install the whole lamp.
- Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
- It's available in black or optional dark bronze, silvery gray or white.
Features:
1. Module lens design make the lamp with well suited lighting distributing for LED parking lot lighting.
2. Hollow out heat sink design make the lamp weight lighter and have good heat dissipation.
3. 3 types of installation brackets.
4. Good-looking appearance. lamp luminous efficiency reaches 135lm/w.
5. Lighting distribution curve: Type 3
6. Can be with photocell sensor and motion sensor.
Photometrics:
Type 3 optics produce an asymmetrical pattern that directs the majority of the light forward and equally on both sides of the luminaire. In a back-to-back configuration, it creates a rectangular pattern which can extend pole spacings.
Applications:
- Auto dealerships.
- parking lots, walkways, roadways.
- campuses, facade lighting.
- grocery stores and other public areas.
Product Dimension (mm):
AM
DM
FAQ:
Q1. Can I have a sample order ?
A: Yes, we welcome to order sample to test and check quality.
Q2. What about the lead time?
A: Sample needs 1-2 days, Bulk order around 25-30days to produce, if customized color, will need more production time.
Q3. How do you ship the goods ?
A: By express, by air, by sea.(if ship from warehouse, will shipped by express or by truck with pallet)
Q4. What is a general business process?
A:Send inquiry to LEDSION→(Customer provides engineering information→Dialux simulation design→Confirm design plan and product→) Specification confirmation→Quotation→Sample list confirmation→Form invoice→Payment bank document→Sample delivery→Sample satisfaction→Big order list→ Formal invoice → 30% deposit payment in advance → production ready → 70% balance bank check → delivery → after-sales service
8. We don't know how to install,can you help?
A: We offer both online and on-site installation instructions and testing. Please communicate with us in advance, we will negotiate to confirm the more appropriate guidance to ensure the smooth completion of the project.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5years warranty.
Dallas warehouse introduction:
Ledsion Lighting have its own warehouse in the United States, Located in Dallas, TX 75247. Warehouse area up to 50,000 square feet.
We have professional logistic team and after-saels service team there. Can help you to ship out the goods in the same day and provide high quality after-sales service.
