5700K 135LM/W 60750LM LED Shoebox Light Fixture Parking Lot
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-7GESBV450WCT3B1-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/CTN, packing size: 29*15*6inch，weight: 20lbs |
| Delivery Time: | 1-2 days |
| Payment Terms: | T/T, CC, PP, Check |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Product Name: | 450W LED Shoebox Light | Power: | 450W |
|---|---|---|---|
| Light Source: | Seoul SMD3030 (462pcs) | Lamp Luminous Flux(lm): | 120-135LM/W |
| Lamp Luminous Efficiency(lm/w): | 54000-60750LM | Ip Rating: | IP65 |
| Working Temperature(℃): | -40 - 50℃ | Color Temperature(cct): | 5000K，4000K 5700K Available |
| Beam Angle: | 150*85 Degree | CRI: | >70Ra |
| LED Driver: | Meanwell HLG-240H-48B*2PCS | Working Lifetime(hour): | 50000 Hours |
| Input Voltage(v): | 100-277VVac | Application: | Parking Lot,square, Street |
| Warranty(year): | 5 Years | Certification: | UL, DLC |
| High Light: | 60750LM 5700K LED Shoebox Light Fixture,60750LM LED Shoebox Light Fixture,60750LM LED parking lot flood lights |
||
Product Description

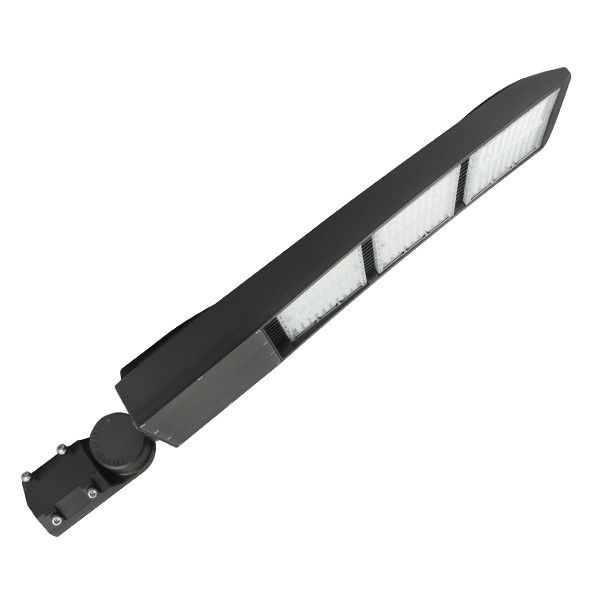

450W Outdoor LED shoebox light 5000K 100-277Vac coffee color with slip fitter/ arm/ yoke mount
LED Shoebox Light Features:
LED Shoebox Light adopted optical light distribution, that is no glare, no light pollution, highly directional light and more even luminous beam.
1. Module lens design make the lamp with well suited lighting distributing for LED parking lot lighting.
2. Hollow out heat sink design make the lamp weight lighter and have good heat dissipation.

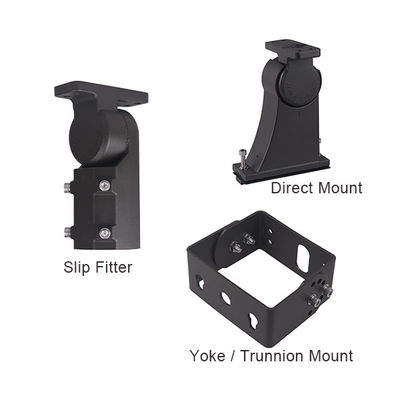

3. 5 kinds of installation brackets.
4. Good-looking appearance. lamp luminous efficiency reaches 140lm/w.
5. Lighting distribution curve: Type Ⅲ
6. Can be with photocell sensor and motion sensor.
Specifications:
| OPTICAL | Input Power | 450W |
| Lumen | 54000-60750LM | |
| Lumen Efficacy | 120-135LM/W | |
| Color Temperature | 4000K, 4500K, 5000K, 5700K | |
| CRI | >70 | |
| Viewing Angle | 150*85 Degree(Type Ⅲ) | |
| ELECTRICAL | Input Voltage | 100-277Vac 50/60Hz |
| PF | ≥0.9 | |
| THD | ≤20% | |

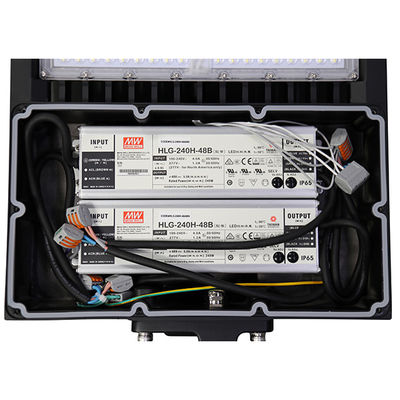

| Driver Model | Meanwell HLG-240H-48B*2PCS | |
| Optional Accessory | Photocell Surge protector Motion sensor | |
| MATERIALS | LED Brand | SEOUL |
| LED Type | SMD3030 | |
| LED QTY | 462 PCS | |
| Housing | Aluminum | |
| Housing Color | Black / Brown/white/Customized | |
| Waterproof Rating | WET(IP65) | |
| OTHERS | Operating Temperature | -40℃ TO 45℃ |
| Operating Humidity | 10％-90％ RH | |
| Storage Temperature | -40℃ TO 80℃ | |
| Storage Humidity | 10％-95％ RH | |
| Warranty Time | 5 Years |
Photometrics:
Applications:
- School playground.
- Outdoor packing area.
- Tennis court, football court, basketball cout.
- Community leisure entertainment plaza, road lamp etc.
Product Dimension (mm):
AM
DM
YM
Packing:
| Stent Type | Lamps Net Weight | Size | Qty/ Carton | Weight/ Carton |
| AM | 11.5 KG | 1015x 395 x 165mm | 1 | 12.7KG |
| DM | 12KG | 1015 x 395 x 165mm | 1 | 13.2 KG |
| YM | 11.2KG | 1015 x 395 x 165mm | 1 | 12.4KG |
FAQ:
Q1. Can I have a sample order ?
A: Yes, we welcome to order sample to test and check quality.
Q2. What about the lead time?
A: Sample needs 1-2 days, Bulk order around 25-30days to produce, if customized color, will need more production time.
Q3. How do you ship the goods ?
A: By express, by air, by sea.(if ship from warehouse, will shipped by express or by truck with pallet)
Q4. What is a general business process?
A:Send inquiry to LEDSION→(Customer provides engineering information→Dialux simulation design→Confirm design plan and product→) Specification confirmation→Quotation→Sample list confirmation→Form invoice→Payment bank document→Sample delivery→Sample satisfaction→Big order list→ Formal invoice → 30% deposit payment in advance → production ready → 70% balance bank check → delivery → after-sales service
8. We don't know how to install,can you help?
A: We offer both online and on-site installation instructions and testing. Please communicate with us in advance, we will negotiate to confirm the more appropriate guidance to ensure the smooth completion of the project.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
