Photocell 150W Shoebox Light AC100-277V 5000K with Slip Fitter/Direct Mount/Trunnion mount
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-ESBC7150WCT3A1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/ctn, 25*16*7inch, 17lbs, 1850pcs/40HQ |
| Delivery Time: | 1-2days |
| Payment Terms: | T/T, CC, PP, Western Union |
| Supply Ability: | 2500pcs |
|
Detail Information |
|||
| Product Name: | 150W LED Shoebox Light With Photocell | Power: | 150W |
|---|---|---|---|
| Lamp Luminous Efficiency(lm/w): | 130LM/W | Waterproof Rating: | IP65 |
| Beam Angle: | Type 3 | LED Brand: | SEOUL Brand |
| LED Qty: | 154 Pcs | Color Temperature(cct): | 40K, 50K, 57K |
| Input Voltage(v): | AC 100-277V | LED Driver: | China Brand Driver （Sosen Brand） |
| Driver Model: | SS-150VA-56B | Working Lifetime(hour): | 50,000 Hrs |
| Light Color: | Brown | Lamp Body Material: | Aluminum Alloy |
| Working Temperature(℃): | -40 - 50℃ | Warranty(year): | 5 Years |
Product Description

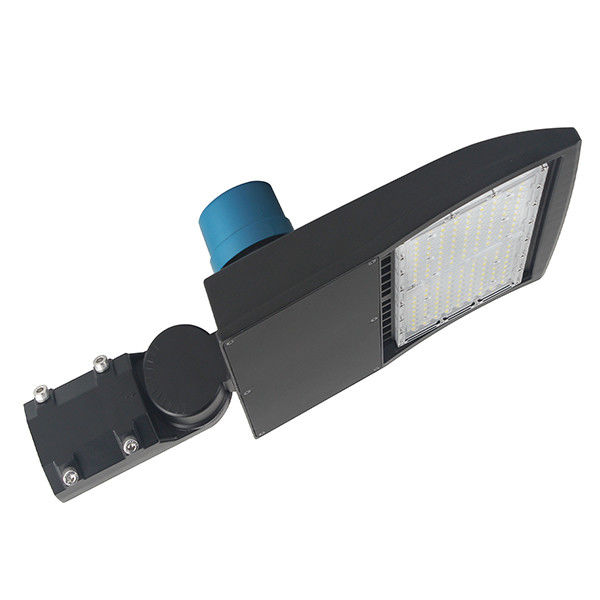

Photocell 150W Shoebox Light AC100-277V 5000K with Slip Fitter/Direct Mount/Trunnion mount

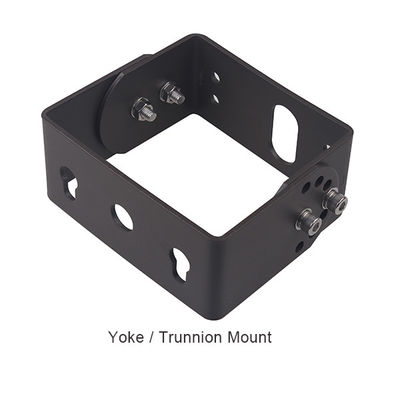

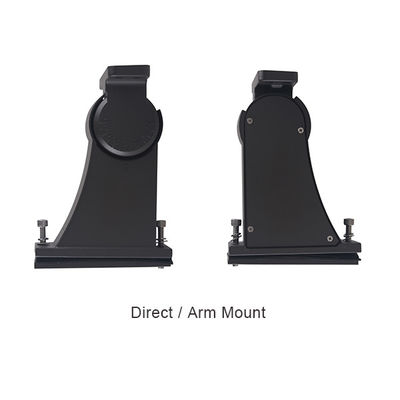

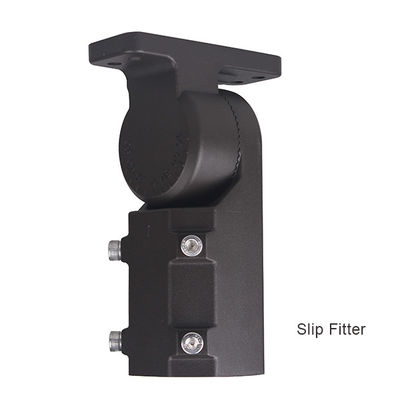

LEDSION LED Shoebox Lights are DLC UL listed, three mounts options, Slip Filter for round pole, Pole mount for square pole or round pole, Yoke Mount for wall installation. And Photocell available.
Advantage:
- Through the safety standard UL certification, as well as DLC certification.
- We use high CRI led chips, 154pcs Seoul chips.
- Photocell control, can saving your energy and money.
- Use dimmable driver with 1-10V dim. Waterproof IP65 driver, input voltage 100-277V AC 50/60Hz.
- Installation and operation easily.
- 50,000 hours long lifespan.
- Instant start, NO flickering, NO humming.
- No mercuty, green and eco-friendly for environment.
Features and benefits:
· High efficiency, up to 150lm/w. High Luminous flux >up to 45,000lm, save more energy;
· Die-cast aluminum heat sink. Good heat dissipation.
· Perfectly suitable for outdoor use due to IP65.
· 50000 hours lifetime, low maintenance;
· Fast and easy install;
· UL,DLC certification.
Specifications:
| Product Name | LED Shoebox Light 150W with photocell |
| Wattage | 150W |
| Lumens Efficiency |
125-140LM/W |
| Lunmen Output |
18800-21000LM |
| Color Temperature | 5000K |
| Light Distribution | Type3 |
| Input Voltage | 100-277V ac 50/60Hz |
| Mounting Bracket | AM, DM and YM |
| Dimmable | 1-10V DIM |
| Motion Sensor / Photocell | Available |
| Finish | Brown |
| Housing | Aluminum Alloy |
| IP Rating | WET (IP65) |
| Metal Halide Equal | 300W - 500W |
| DLC Listed | YES |
| Warranty | 5 Years |
| Life Hours | 50,000hrs |
Photometrics:
Product size(mm):
AM: 529*333*29mm
DM: 568*333*160mm
YM: 464*333*89mm
Package:
| Stent Type | Lamp Net Weight | Size | Qty / Carton | Gross Weight / Carton |
| YM | 5.1KG | 585*385*160MM | 1 PC | 6KG |
| AM | 5.4KG | 585*385*160 MM | 1 PC | 6.3 KG |
| DM | 5.9 KG | 585*385*160 MM | 1 PC | 6.8KG |
| A&D | 6.3KG | 585*385*160 MM | 1 PC | 7.2 KG |
FAQ:
1.Do you have any MOQ limit for led light order?
A: MOQ 1pcs is available.
2. What is the warranty?
A: Based on DLC standards, we offer 5 years warranty .
3.How do you ship the goods and how long does it take to arrive?
A: (1) If you are in USA main land or in Canada, the cargos you need we have in stocked in warehouse, we can send out at the same day after payment by express, 2-5days shipping time to your address.
(2) If you are in the other country, we can send from China, sample time 7 working days, bulk order 20 working days. can ship by express, by air or by sea.
4.If I have a project that need to make dialux, can you provide this service?
A: Yes, of course! We can offer professional solution for you. Do light dialux accodring to your lighting need.
5. Can I add my logo on the product label?
A: Yes, of course! But there is a quantity requirement.
Dallas Warehouse introduction:
Have our own warehouse in the United States, Located in Dallas, TX 75247. Professional aftersale team there to help customer handle any questions you meet. Warehouse area up to 50,000 square feet.
