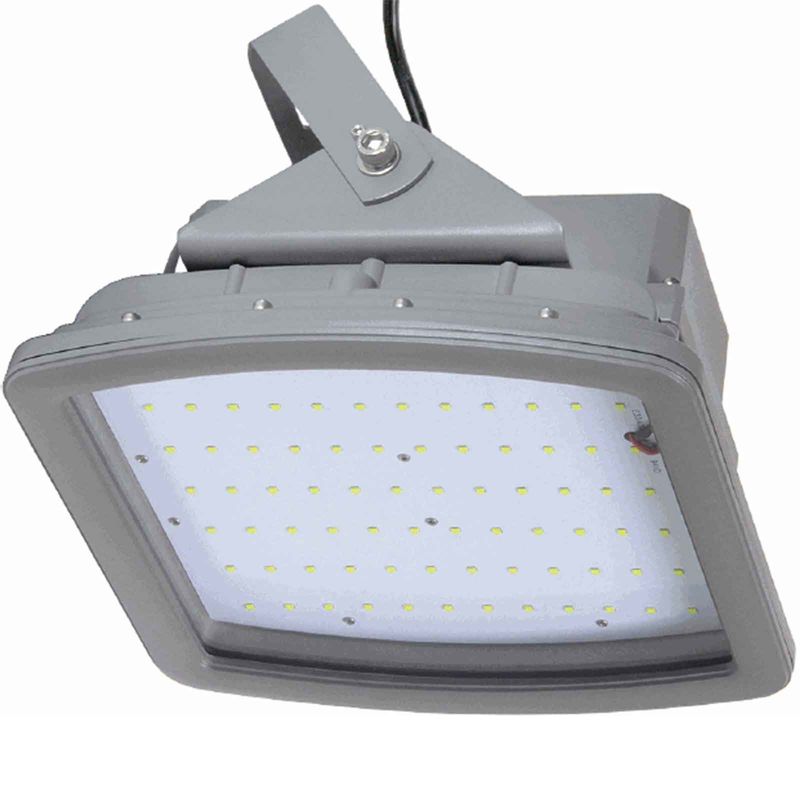

Class I Division 2 200W LED Explosion Proof Flood Light Aluminum Gray
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-CES-J200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/ctn, 18.5*18.5*9.5inch, 27.5lbs, 1175pcs/ 40HQ container |
| Delivery Time: | 1-2days |
| Payment Terms: | T/T, CC, PP,Check, Western Union |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Product Name: | Explosion LED Floodlight 200W | Power: | 200W |
|---|---|---|---|
| Lumen Efficiency: | 130LM/W | Lumen: | 26,000LM |
| Color Temperature: | 5000K | CRI: | >70Ra |
| Viewing Angle: | 120° | Voltage: | 100-277Vac 50/60Hz |
| LED Brand: | LED Brand Bridgelux | LED Type: | 3030 |
| LED QTY: | 192 PCS | Housing: | Aluminum Alloy |
| Housing Color: | Gray/Green/Yellow/Customized | Waterproof Rating: | IP68 |
| Warranty: | 5 Years | Aplication: | Zone1 & Zone2 Gaseous Environment, And Zone21 & Zone22 Dust Environment |
| Class: | Class I Division 2 Group A, B, C, D | ||
| High Light: | 200W LED Explosion Proof Flood Light,Aluminum LED Explosion Proof Flood Light,Gray class 1 div 2 led light fixtures |
||
Product Description
Explosion LED Floodlight Class I Division 2 Group A, B, C, D 200W Aluminum Gray color
Main Features:
1. High Efficacy low decay 700MA LED chip
2. High heat transmit die cast housing ADC12 aluminum, patent design, IP68
3. Shock and vibration resistant tempered glass, super clear 95% light transmit rate
4. Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
5. Original Bridgelux LED source,high luminous efficacy and long lifespan
6. MEANWELL HLG series driver, the highest level of MEANWELL driver
7. Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
8. 2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
9. Working temperature: -30ºC to 50ºC.
10. IK09 robust design.
11. UL certified housing, suitable for marine.
Packing & Shipping:
- Customized packing are available, different MOQ according to different model.
- Regular sample will be ready in 24 hours, regular order delivery by express / sea/ air accordingly.
- Shipping from Dallas warehouse, by express: 3-5days, by truck: 5-7days normally, differenct address different shipping time.
- Shipping from China factory, by express: 3-7 days normally; shipping by air: 8-15 days normally; shipping by sea, 15-35 days accordingly.
Specification:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Photometrics:
Product Dimension(mm):
Applications:
1. Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
2. Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
3. Class I Division 2 Group A, B, C, D
