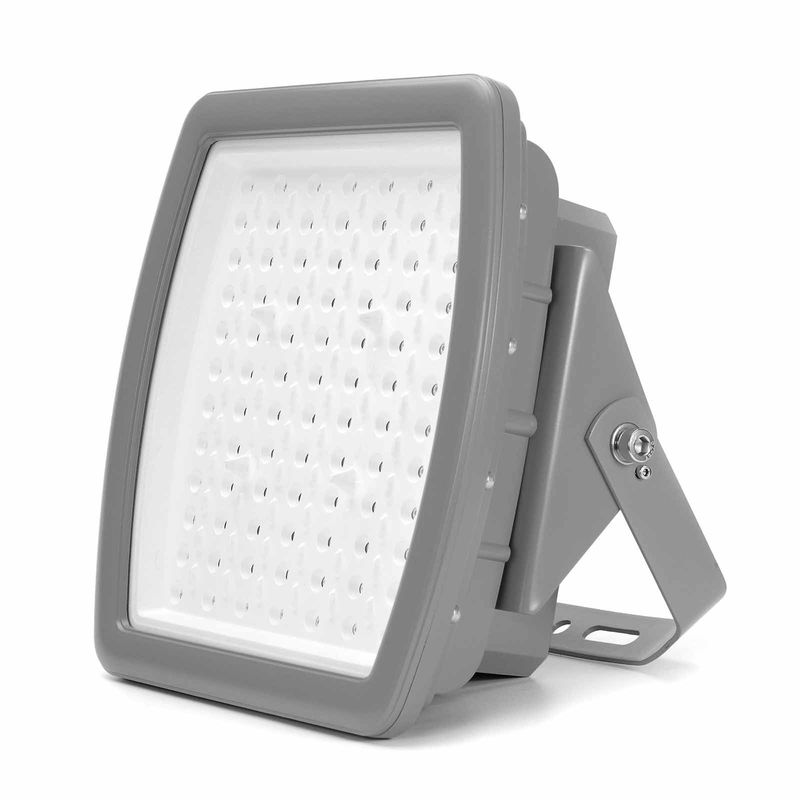

130LM/W 100W IP68 LED Explosion Proof Flood Light Hazardous
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-CES-J100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/ctn, 15*15*8.5inch, 19lbs, 2370pcs/ 40HQ container |
| Delivery Time: | 1-2days |
| Payment Terms: | T/T, CC, PP,Check, Western Union |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Product Name: | Explosion LED Floodlight 100W | Power: | 100W |
|---|---|---|---|
| Lumen Efficiency: | 130LM/W | Lumen: | 13,000LM |
| Color Temperature: | 5000K | CRI: | >70Ra |
| Viewing Angle: | 120° | Voltage: | 100-277Vac 50/60Hz |
| LED Brand: | LED Brand Bridgelux | LED Chips: | SMD 3030 |
| LED QTY: | 108 PCS | Housing: | Aluminum Alloy+Glass |
| Housing Color: | Gray/Green/Yellow/Customized | Waterproof Rating: | IP 68 |
| Warranty Time: | 5years | Aplication: | Zone1 & Zone2 Gaseous Environment, And Zone21 & Zone22 Dust Environment |
| Class: | Class I Division 2 Group A, B, C, D | ||
| High Light: | 130LM/W LED Explosion Proof Flood Light,100W LED Explosion Proof Flood Light,IP68 explosion proof led flood light |
||
Product Description
130LM/W 100W IP68 Hazardous LED Flood Light Shipping From USA Warehouse
Main Features:
1. Stocked in USA Self-own warehouse, can ship out at same day after ordered.
2.High Efficiency low decay 700MA LED chip.
3.High heat transmit die-cast housing ADC12 aluminum, patent design, IP68, IK09 robust design.
4.Shock and vibration resistant tempered glass, super clear 95% light transmit rate.
5.Anti-glare.Scientific optical reflector design, more focus,even, comfortable for eyes.
6.Bridgelux LED source,high luminous efficiency and long lifespan.
7.Use the highest level of MEANWELL driver-MEANWELL HLG series driver.
8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature.
9.UL certified housing, suitable for marine
Packing & Shipping:
1. Customized packing are available, different MOQ according to different model.
2. Regular sample will be ready in 24 hours, regular order delivery by express / sea/ air accordingly.
3. Shipping from Dallas warehouse, by express: 3-5days, by truck: 5-7days normally, differenct address different shipping time.
3. Shipping from China factory, by express: 3-7 days normally; shipping by air: 8-15 days normally; shipping by sea, 15-35 days accordingly.
Specification:
| Wattage | 100W |
| Lumens per Watt |
100LM/W |
| Color Temperature | 5000K |
| Beam Angle |
120° |
| Lense | Glass Lense |
| Voltage | 100-277V ac |
| Operating Temperature | -40℃ to 50℃ |
| Operating Humidity | 20%-90% RH |
| Finish | Gray/Green/Yellow/Customized |
| Housing | Die-Casting Aluminum |
| IP Rating | IP 68 |
| Metal Halide Equal | 200W - 300W |
| Warranty | 5 Years |
| Life Hours | 50,000 hrs |
| Certificate | UL, DLC |
Photometrics:
Product Dimension(mm):
Applications:
1. Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
2. Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
3. Class I Division 2 Group A, B, C, D
FAQ:
Q1. What is the main business of Ledsion Lighting?
A: Ledsion focus on LED home lighting products from 2009 till now. Ledsion is the top suppliers of led indoor and outdoor lighting fixtures. Especially focus on LED Shoebox lights, led wallpack lights, led UFO highbay lights, led linear lights and so on.
Q2. What is the warranty of Outdoor LED Lighting?
A : Ledsion outdoor LED Lighting offer 3~5 years warranty depending on different types.
Q3. What is the payment term?
A: For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.
Q4. Can I add my logo on the led Lighting label?
A : Yes,our led lighting can print customer's logo on inner and outer carton. This only can operate on the order which shipped directly from China to customer's address.
Warehouse introduction:
Ledsion Ligting has its own warehouse in Dallas, TX 75247, USA. Warehouse area up to 50,000 square feet. We have professional person responsible for warehouse operation. Professional after-sales service, and professional logistic team, can send out all the goods in the same day customer ordered.
