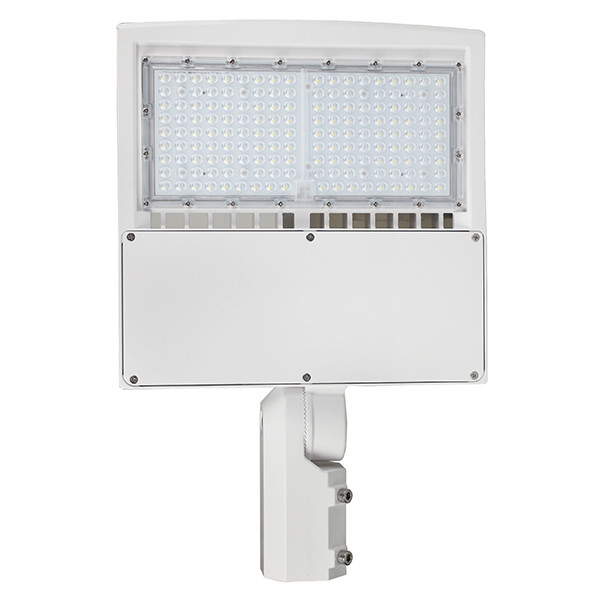

White Housing Outdoor lighting 150W LED shoebox 5000K 100-277Vac IP65
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-ESBV7150WCT3A1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/CTN, packing size: 25*16*7inch，weight: 15lbs |
| Delivery Time: | 1-2 days |
| Payment Terms: | T/T, CC, PP, Check, Western Union |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Product Name: | 150W White Housing Shoebox Light | Power: | 150W |
|---|---|---|---|
| Light Source: | Seoul SMD3030 | Lamp Luminous Flux(lm): | 130lm/W |
| Lamp Luminous Efficiency(lm/w): | 19500lm | Ip Rating: | IP65 |
| Working Temperature(℃): | -40 - 50℃ | Color Temperature(cct): | 4000K 5000K 5700K |
| Beam Angle: | Type 3 | CRI: | >70Ra |
| Lamp Body Material: | Die-casing Aluminum Housing | Working Lifetime(hour): | 50000 |
| Input Voltage(v): | 100-277Vac | Application: | Parking Lot,square, Street |
| Warranty(year): | 5 Years | Certification: | UL, DLC |
Product Description
White Housing Outdoor lighting 150W LED shoebox 5000K 100-277Vac IP65
Advantage:
- UL listed, DLC Premium.
- Seoul brand Chip, high CRI.
- IP65 driver, input voltage 100-277VAC.
- Output constant current lever can beadjusted through output cable with 1-10V dim.
- No UV or IR in the beam.
- Standard lighting beam angle Type 3.
- 50000 hours lifespan.
- soft and uniform lighting, safe to eyes.
- Instant start, NO flickering, NO humming.
- Green and eco-friendly without mercury.
Specifications:
| OPTICAL | Input Power | 150W |
| Lumen | 18800-21000LM | |
| Lumen Efficacy | 125-140 LM/W | |
| Color Temperature | 4000K, 5000K, 5700K | |
| CRI | >70Ra | |
| Viewing Angle | 150*85 Degree(Type3) | |
| ELECTRICAL | Input Voltage | AC 100-277V 50/60Hz |
| PF | ≥0.9 | |
| THD | ≤20% | |
| Driver Model | China Brand Driver SS-150VA-56B | |
| Optional Accessory | Photocell/ Motion sensor | |
| MATERIALS | LED Brand | SEOUL |
| LED Type | SMD3030 | |
| LED QTY | 154pcs | |
| Housing | Aluminum Alloy | |
| Housing Color | Brown/ white/ Black/ Customized | |
| Waterproof Rating | WET(IP65) | |
| OTHERS | Operating Temperature | -40℃ TO 45℃ |
| Operating Humidity | 10％-90％ RH | |
| Storage Temperature | -40℃ TO 80℃ | |
| Storage Humidity | 10％-95％ RH | |
| Warranty Time | 5 Years |
Photometrics:
Applications:
1. Parking Lot Lighting, Square Lighting
2. Street Lighting, Highway Lighting
3. Outdoor Area Lighting, High Mast Lighting
4. Roadway Lighting, Path Lighting
5. Street park lighting.
Product Dimension (mm):
FAQ:
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: If the sample you need, and we have stock in USA warehouse, can ship out at the same day after payment.
If bulk order from China factory, 25-30 working days for production.
Q3. How do you ship the goods ?
A: By express (DHL, UPS. FedEx), by Air, by Sea.
Q4. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the shipment or production.
Q5. Is it OK to print my logo on products ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty.
Package:
| Stent Type | Lamp Net Weight | Size | Qty / Carton | Gross Weight / Carton |
| AM | 5.7 KG | 600X380X160MM | 1 | 6.6KG |
| DM | 6.2KG | 600X380X160MM | 1 | 7.1KG |
| YM | 5.4 KG | 600X380X160MM | 1 | 6.3KG |
Warehouse:
Ledsion Lighting have its own warehouse in the United States, Located in Dallas, TX 75247. Warehouse area up to 50,000 square feet.
We have professional logistic team and after-saels service team there. Can help you to ship out the goods in the same day and provide high quality after-sales service.
