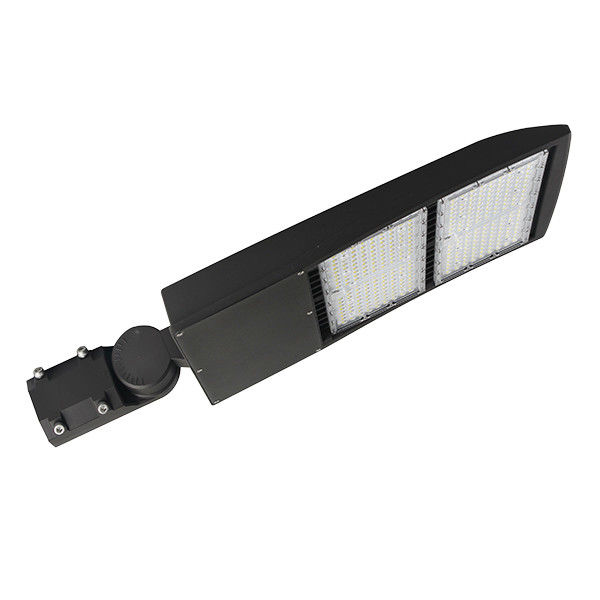

Slip Fitter Mount 26000LM 200W 5000K LED Shoebox Light IP65
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-ESBV7200WCT3A1-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/CTN, packing size: 32*15*7inch，weight: 22lbs |
| Delivery Time: | 1-2 days |
| Payment Terms: | T/T, CC, PP, Check, Western Union |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Product Name: | 200W LED Shoebox Light | Power: | 200W |
|---|---|---|---|
| Light Brand: | Seoul | Lamp Luminous Flux(lm): | 130lm/W |
| Lamp Luminous Efficiency(lm/w): | 26000lm | Ip Rating: | IP65 |
| Working Temperature(℃): | -40 To 50℃ | Color Temperature(cct): | 4000K 5000K 5700K |
| Beam Angle: | Type 3 | CRI: | >80 |
| Lamp Body Material: | Die-casing Aluminum Housing | Working Lifetime(hour): | 50000 |
| Input Voltage(v): | 100-277V Ac | Application: | Parking Lot,square, Street |
| Warranty(year): | 5 Years | Certification: | UL, DLC |
| High Light: | LEDSION 200W LED Shoebox Light,LEDSION 26000LM LED Shoebox Light,LEDSION IP65 led shoebox flood light |
||
Product Description
200W LED shoebox light 5000K 100-277Vac coffee color slip fitter mount
LEDSION LED Area Light | Parking Lot Light DLC UL listed, Slip Filter, Pole mount or Yoke Mount available, Photocell/Motion sensor available.
Advantage:
- Safe & Reliable - UL DLC Premium 5 listed for Realumens LED Parking Lot Shoebox Area lights.
- Energy saving - DLC Premium 5 listed with super bright Soul 3030 LEDs, equal to 600W MHD/HPS lamp with 130lm/W.
- Long lifespan - 5 years warranty with Soson Driver and Soul SMD3030, excellent heat dissipation with Die-casting Aluminium integrated housing.
Specifications:
| Model No. |
LS-ESBV7200WCT3A1-50 |
| Input Power | 200W |
| Lumen |
25000-28000lm |
| Lumen Efficacy | 125-140lm/W |
| Color Temperature | 4000K, 5000K, 5700K |
| CRI | >70 |
| Viewing Angele | 150*80Degree (Type Ⅲ) |
| Input Voltage | 100-277V ac 50/60Hz |
| PF | ≥0.9 |
| THD | ≤20% |
| Driver Brand | China Brand Driver |
| Driver Model |
SS-200V-54B |
| Optional Accessory | Photocell / Surge Protector |
| LED Brand | Seoul |
| LED Type | SMD3030 |
| LED QTY | 196 pcs |
| Housing | Aluminum Alloy |
| Housing Color | Coffee color / Black / Customized |
| Waterproof rating | IP65 |
| Opertating Temperature | -40℃ TO 45℃ |
| Operating Humidity | 20%-90% RH |
| Storage Temperature | -40℃ TO 80℃ |
| Certificate | UL, DLC |
| Warranty | 5 years |
Photometrics:
Applications:
- Outdoor basketball court, tennis court.
- Badminton court, the football field.
- The school playground, stadium.
- Community leisure entertainment plaza, road lamp etc.
Product Dimension (mm):
Packing:
| Stent Type | Lamp Net Weight | Carton Size | Qty / Carton | Gross Weight / Carton |
| AM | 7.7kg | 775×380×160mm | 1 | 8.9kg |
| DM | 8.2kg | 775×380×160mm | 1 | 9.4kg |
| YM | 7.4kg | 775×380×160mm | 1 | 8.6kg |
FAQ:
1. Leadtime, from Dallas warehouse 1-2 days for sample orders, 3-5 days for massive orders. From China factory: 15days for sample orders. 25-35days for massive orders.
2. Shipment: from Dallas: door-to-door, from factory: door-to-door, air-shipping, sea-shipping.
3. Payment terms: T/T, PayPal, Check, Cash, Credit Card, Western Union.
4. Discount offered based on order quantity
LEDSION Dallas Warehouse:
Ledsion Lighting have its own warehouse in the United States, Located in Dallas, TX 75247. Warehouse area up to 50,000 square feet.
We have professional logistic team and after-saels service team there. Can help you to ship out the goods in the same day and provide high quality after-sales service.
