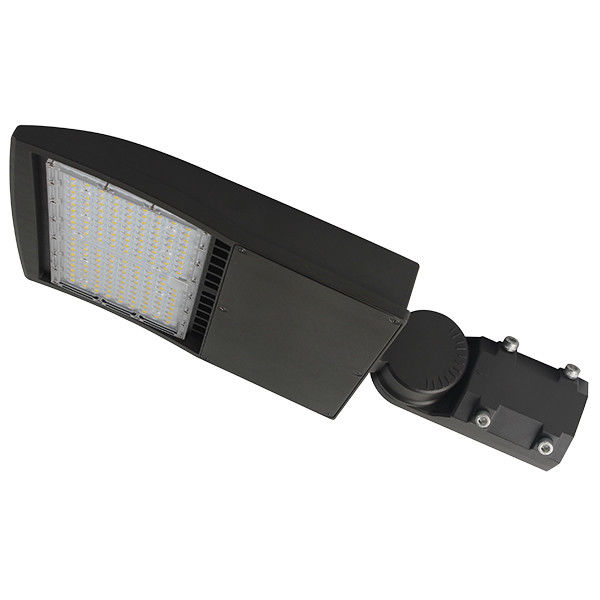

Slip Fitter 150W LED shoebox light 5000K 200-480Vac coffee color
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-ESBV7150WCT3H1-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/CTN, packing size: 25*16*8inch，weight: 15lbs |
| Delivery Time: | 1-2 days |
| Payment Terms: | T/T, CC, PP, Check, Western Union |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Product Name: | 150W High Voltage Shoebox Light | Power: | 150W |
|---|---|---|---|
| Light Source: | Seoul SMD3030 | Lamp Luminous Flux(lm): | 130lm/W |
| Lamp Luminous Efficiency(lm/w): | 19500lm | Ip Rating: | IP65 |
| Working Temperature(℃): | -40 - 50℃ | Color Temperature(cct): | 4000K 5000K 5700K |
| Beam Angle: | Type 3 | CRI: | >80Ra |
| Lamp Body Material: | Die-casing Aluminum Housing | Working Lifetime(hour): | 50000 |
| Input Voltage(v): | 200-480Vac | Application: | Parking Lot,square, Street |
| Warranty(year): | 5 Years | Certification: | UL, DLC |
Product Description
Slip Fitter 150W LED shoebox light 5000K 200-480Vac coffee color
Applications:
1. Parking Lot Lighting, Square Lighting
2. Street Lighting, Highway Lighting
3. Outdoor Area Lighting, High Mast Lighting
4. Roadway Lighting, Path Lighting
5. Street park lighting.
Slip Fitter 150W LED shoebox light 5000K 200-480Vac coffee color
Main Features:
- UL DLC approved.
- Mean Well IP65 driver, input voltage 200-480VAC.
- Seoul Chip, high CRI.
- Output constant current lever can be adjusted through output cable with 1-10V.
- No UV or IR in the beam.
- Energy saving, long lifespan.
- Easy to install and operate.
- Light is soft and uniform, safe to eyes.
- Green and eco-friendly without mercury.
- Instant start, NO flickering, NO humming.
Specifications:
| Model No. | LS-ESBV7150WCT3H1-ABCDEF |
| Input Power | 150W |
| Lumen |
18800-21000lm |
| Lumen Efficacy | 125-140lm/W |
| Color Temperature | 4000K, 5000K, 5700K |
| CRI | >70 |
| Viewing Angele | 150*80Degree (Type Ⅲ) |
| Input Voltage | 200-480V ac 50/60Hz |
| PF | ≥0.9 |
| THD | ≤20% |
| Driver Brand | Meanwell |
| Driver Model |
HVG-150-48AB |
| Optional Accessory | Photocell / Surge Protector |
| LED Brand | Seoul |
| LED Type | SMD3030 |
| Housing | Aluminum Alloy |
| Housing Color | Coffee color / Black / Customized |
| Waterproof rating | IP65 |
| Opertating Temperature | -40℃ TO 45℃ |
| Operating Humidity | 20%-90% RH |
| Storage Temperature | -40℃ TO 80℃ |
| Certificate | UL, DLC |
| Warranty | 5 years |
Photometrics:
Product Dimension (mm):
Packing:
| Stent Type | Lamp Net Weight | Size | Qty / Carton | Gross Weight / Carton |
| AM | 5.4KG | 585*385*160 MM | 1 PC | 6.3KG |
| DM | 5.9KG | 585*385*160 MM | 1 PC | 6.8 KG |
| YM | 5.1 KG | 585*385*160 MM | 1 PC | 6KG |
| A&D | 6.3KG | 585*385*160 MM | 1 PC | 7.2 KG |
Why choose us?
- Own built 50,000 sq.ft warehouse with professional engineer and sales here, provide professional service .
- Quick shipment within 24hrs after payment
- Accept Credit card/ Chase/ Check/ Wire transfer/Paypal payment
- Blind drop shipping and customer protected .
FAQ:
1.What is the warranty?
A: We offer 5years warranty.
2. What is the payment period?
A: For sample orders, we just accept wire transfer 100% in advance, PayPal, Western Union.
For large orders, please pay 30% deposit by wire transfer and pay 70% balance before shipment.
3.What is the payment term?
A: For sample order, we accept T/T, Paypal, West Union, 100% in advance.
For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.
4. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Dallas warehouse introduction:
Ledsion Lighting have its own warehouse in the United States, Located in Dallas, TX 75247. Warehouse area up to 50,000 square feet.
We have professional logistic team and after-saels service team there. Can help you to ship out the goods in the same day and provide high quality after-sales service.
