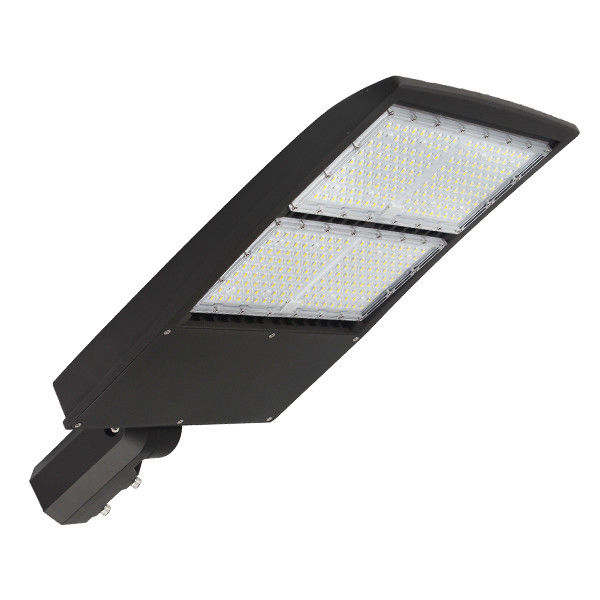

39000LM 300W LED Shoebox Light , Outdoor Led Flood Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-ESBV7300WCT3H1-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 1pcs/CTN, packing size: 29*15*6inch，weight: 20lbs |
| Delivery Time: | 1-2 days |
| Payment Terms: | T/T, CC, PP, Check |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Product Name: | 300W High Voltage LED Area Lights | Power: | 300W |
|---|---|---|---|
| Lumen: | 37500-42000 | Lamp Luminous Flux(lm): | 130lm/W |
| Ip Rating: | IP65 | Color Temperature(cct): | 4000K 5000K 5700K |
| CRI: | >80Ra | Lamp Body Material: | Die-casing Aluminum Housing |
| Input Voltage(v): | 200-480Vac | Application: | Parking Lot,square, Street |
| Warranty(year): | 5 Years | Certification: | UL, DLC |
| High Light: | LEDSION 39000LM 300w led shoebox light,LEDSION 39000LM Outdoor 300w led shoebox light,39000LM outdoor led flood lights |
||
Product Description
Outdoor lighting 300W LED area lights 39000lm 200-480Vac brown slip fitter
High quality Brown 300W LED Shobox Lights in our USA Stock, With UL certification and DLC certification and 5 years warranty. There are 120V 480V and 3 types of Mounts(Slip Fitter/ Direct Mount/Yoke Mount) for you choose. What’s More we can arrange the shipment within 24 hours. If you like, the Photocell and motion sensor are achievable.
LED Shoebox Light Features:
LED Shoebox Light adopted optical light distribution, that is no glare, no light pollution, highly directional light and more even luminous beam.
- Module lens design make the lamp with well suited lighting distributing for LED parking lot lighting.
- Hollow out heat sink design make the lamp weight lighter and have good heat dissipation.
- 5 kinds of installation brackets.
- Good-looking appearance. lamp luminous efficiency reaches 140lm/w.
- Lighting distribution curve: Type Ⅲ
- Can be with photocell sensor and motion sensor.
Applications:
- Outdoor basketball court, tennis court.
- Badminton court, the football field.
- The school playground, stadium.
- Community leisure entertainment plaza, road lamp etc.
Specifications:
| Model No. |
LS-ESBV7300WCT3H1-ABCEF |
| Input Power | 300W |
| Lumen | 37500-4200lm |
| Lumen Efficacy | 125-140lm/W |
| Color Temperature | 4000K, 5000K, 5700K |
| CRI | >70 |
| Viewing Angele | 150*80Degree (Type Ⅲ) |
| Input Voltage | 200-480V ac 50/60Hz |
| PF | ≥0.9 |
| THD | ≤20% |
| Driver Brand | Meanwell |
| Driver Model |
HVG-320-48AB |
| Optional Accessory | Photocell / Surge Protector |
| LED Brand | Seoul |
| LED Type | SMD3030 |
| LED QTY | 308 pcs |
| Housing | Aluminum Alloy |
| Housing Color | Coffee color / Black / Customized |
| Waterproof rating | IP65 |
| Opertating Temperature | -40℃ TO 45℃ |
| Operating Humidity | 20%-90% RH |
| Storage Temperature | -40℃ TO 80℃ |
| Certificate | UL, DLC |
| Warranty | 5 years |
Product Dimension (mm):
Packing:
| Stent Type | Lamp Net Weight | Size | Qty / Carton | Gross Weight / Carton |
| AM | 8.1 KG | 755*385*160 MM | 1 PC | 9.3KG |
| DM | 8.6KG | 755*385*160 MM | 1 PC | 9.8KG |
| YM | 7.8KG | 755*385*160 MM | 1 PC | 9KG |
| A&D | 8.9KG | 755*385*160 MM | 1 PC | 10.1KG |
