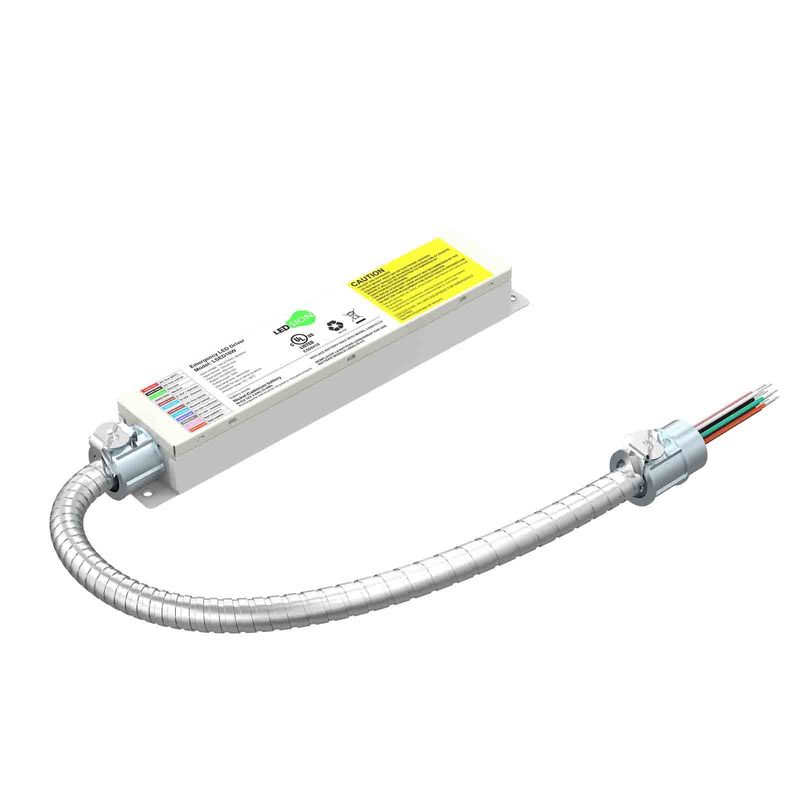

16W Emergency Battery Backup LED Driver
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LEDSION |
| Certification: | UL |
| Model Number: | LSED16W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 4PC PER CASE |
| Delivery Time: | 24 HOURS |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000PC PER WEEK |
|
Detail Information |
|||
| Product Name: | LED Back Up Driver | Power: | 16W |
|---|---|---|---|
| Rated Input Voltage: | 100-277VAC,100-347VAC,50/60Hz | Input Current: | 120mA Max |
| Input Power: | 8W Max | Power Factor: | 0.6 @100VAC, 0.5@347VAC |
| Recharge Time: | 24hours | Discharge Time: | 90 Minutes |
| Output Voltage Range: | AC120V,60Hz (sinusoid) | Max Output Voltage: | 250V |
| Highlight: | 16W emergency battery backup led driver,120mA emergency battery backup led driver,100V led emergency backup driver |
||
Product Description
US Warehouse Same Day Shipping LED Back Up Driver 16W With 90 Minutes Discharge Time
Product description
- Suit for 10W to 300W lamp with internal or extemal led driver
- 10W-300W lamp must be with 0-10V dimmer function
- Used with Lifepo4 and Ni-cd battery
- DC150-200V output
- LED emergency converter that can transfer standard LED
- fitting into emergency LED fitting
- Accessary test switch and charge indicator
Applications
- UL Listed for dry / damp locations
- For use on a wide range of LED fittings to convert them from
- standard to emergency fitting
- Outout DC150-200V
- Additional Relay that can control standard LED driver
- Deep discharge protection
- Ambient range ta 0 . 50C
- IP20 protection
- Not intended for use in luminaries for high-risk task area lighting
LSED suit for below lamp
16W above lamp must be with 0-10V or 1-10V dimmer.
Lamp power must be ≤15W(1W extra power) when dimmer is at the lowest voltage.
Our services
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language;
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do OEM.
| Product Name | LED Back Up Driver |
| Power | 16W |
| Rated input voltage | 100-277VAC,100-347VAC,50/60Hz |
| Input current | 120mA max |
| Input power | 8W max |
| Power factor | 0.6 @100VAC, 0.5@347VAC |
| Recharge time | 24hours |
| Discharge time | 90 minutes |
Dallas Warehouse Introduction:
Ledsion Lighting have its own warehouse in the United States, Located in Dallas, TX 75247. Warehouse area up to 50,000 square feet.
