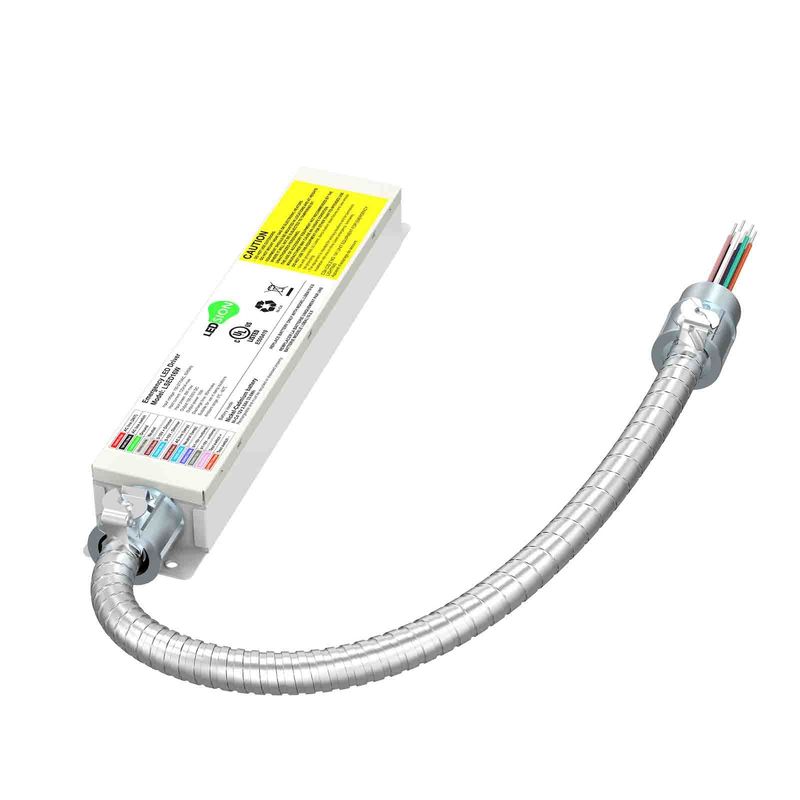

347V 25 Watt 120mA Emergency Battery Backup LED Driver
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LEDSION |
| Certification: | UL |
| Model Number: | LSED25W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 4PC PER CASE |
| Delivery Time: | 24 HOURS |
| Payment Terms: | Western Union, MoneyGram, T/T, L/C |
| Supply Ability: | 5000PC PER WEEK |
|
Detail Information |
|||
| Product Name: | LED Emergency Back Up Driver | Power: | 25W |
|---|---|---|---|
| Rated Input Voltage: | 100-277VAC,100-347VAC,50/60Hz | Recharge Time: | 24hours |
| Discharge Time: | 90 Minutes | Warranty: | 5 Years Warranty |
| High Light: | 347V emergency battery backup led driver,120mA emergency battery backup led driver,25w emergency driver |
||
Product Description
US Stock LED Emergency Back Up Driver 90 Minutes Discharge For LED Tube Troffer Panel Flood Lights
Product description
- Suit for 10W to 300W lamp with internal or extemal led driver
- 10W-300W lamp must be with 0-10V dimmer function
- Used with Lifepo4 and Ni-cd battery
- DC150-200V output
- LED emergency converter that can transfer standard LED
- fitting into emergency LED fitting
- Accessary test switch and charge indicator
Applications
- UL Listed for dry / damp locations
- For use on a wide range of LED fittings to convert them from
- standard to emergency fitting
- Outout DC150-200V
- Additional Relay that can control standard LED driver
- Deep discharge protection
- Ambient range ta 0 . 50C
- IP20 protection
- Not intended for use in luminaries for high-risk task area lighting
LSED suit for below lamp
25W above lamp must be with 0-10V or 1-10V dimmer.
Lamp power must be ≤24W(1W extra power) when dimmer is at the lowest voltage.
| LED Product Name | LED Emergency Lights |
|
Rated input voltage
|
100-277VAC,100-347VAC,50/60Hz
|
|
Input current
|
120mA max
|
|
Warranty
|
5 Years Warranty
|
|
Power factor
|
0.6 @100VAC, 0.5@347VAC
|
|
Output wire L-out N-out
|
AC 6A Max
|
|
Output voltage range
|
AC120V,60Hz (sinusoid)
|
|
Max output voltage
|
250V
|
|
Recharge time
|
24hours
|
|
Discharge time
|
90 minutes
|
