0-10V Dimming 2x2FT Suspended Ceiling Led Light Panels 4550LM
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS-PLB-XXW22-28CDML-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 2pcs/ctn, 25.39*3.94*25.59inch, 11.46lbs, 1620pcs/ 20GP, 3258pcs/40GP, 3816pcs/40HQ |
| Delivery Time: | 1-2days |
| Payment Terms: | T/T, CC, PP,Check, Western Union |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Produce Name: | 2x2FT LED Backlite Panel Lights | Power: | 20/25/30/35W |
|---|---|---|---|
| Lumen Efficiency: | 130lm/w | Lumen Output: | 2600lm-4550lm |
| Input Voltage: | 120-277VAC 50/60Hz | CCT: | 30K/40K/50K/60K |
| Housing: | Aluminum Alloy+PC | Working Temperature: | -20℃ TO 45℃ |
| PF: | >0.9 | Certificate: | UL, DLC |
| Warranty: | 5 Years | ||
| High Light: | 10V Dim suspended ceiling led light panels,4550LM suspended ceiling led light panels,2x2 led lights for suspended ceiling |
||
Product Description

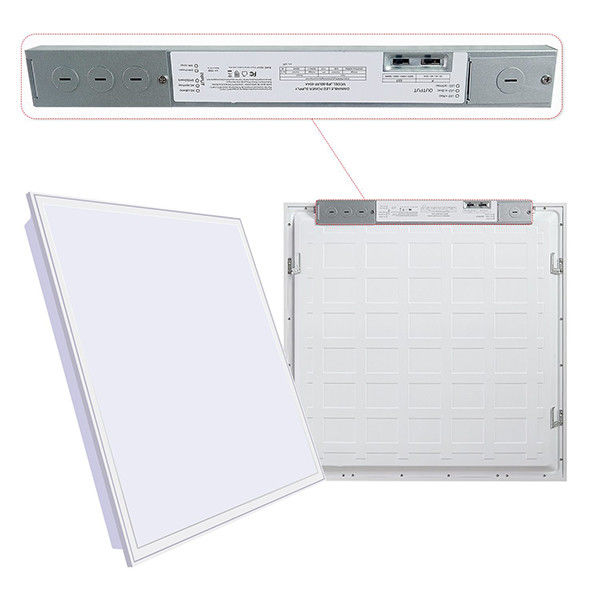

2*2FT Power and CCT Changeable LED Backlite Panel Lights With 0-10V Dimming
LEDSION 2x2FT LED Backlite Panel Lights with 5 Years Warranty, and the lights without LGP, never turn yellow. Now there are many LED Panel Lights in our Dallas Warehosue, We can arrange the shipment within 24 hours.
Main Features:
- Without LGP, never turn yellow
- Isolated driver, PF>0.9, THD≤15 %
- Super bright SMD2835 LEDs, LM80 rated Ra>80
- Lumen output: 130LM/W
- AC120-277V, 0-10V dimmable
- IP Rating: IP40
- Operating temperature: -20°C to 50°C
- Non-flicker, no dark spot, protect your eyes
- 5-7 days fast delivery once confirmed
- Ideal replacement for traditional troffer with
- over 80% energy saving
- 5 years warranty
Applications:
Replaces flurorescent gird, offices, schools, hospitals, libraries, corridors and stairwells,etc.
Specification:
| Wattage | 20/25/30/35W |
| Lumens per Watt | 130LM/W |
| Color Temperature | 3000K/4000K/5000K/6000K |
| Beam Angle | 120º |
| Lense | PC Frosted Lense |
| Voltage | 120-277Vac 50/60Hz |
| Dimmable | 0-10V dim |
| Finish | White |
| Housing | Die-Casting Aluminum+pc |
| IP Rating | IP40 |
| Metal Halide Equal | 60W - 100W |
| UL Listed | YES |
| Warranty | 5 Years |
| Life Hours | 50,000 hours |
FAQ:
1. Leadtime, 1-2 days for sample order or massive orders if we have in USA warehouse;
2. Shipment: door-to-door, air-shipping, sea-shipping;
3. Payment terms: T/T, Paypal,Check, Western Union;
4. Shipping port: Shipping from USA warehouse, or Shenzhen, China ( or appointed port in China );
5. Discount offered based on order quantity;
6. Your inquiry will be replied efficiently;
7. OEM or ODM welcomed;
8. Defective products within warranty period will get maintenance or replacement unconditionally.
Photometrics:
Product Dimension(ft):
Package:
| Item | N.W (lbs) | Carton Size (inch) | QTY/ctn(pcs) | G.W/ctn (lbs) | Qty loaded by 20GP | Qty loaded by 40GP | Qty loaded by 40GQ |
| 2×2ft | 5.07 | 25.39×3.94×25.59 | 2 | 11.46 | 1620 pcs | 3258 pcs | 3816 pcs |
Warehouse introduction:
Ledsion Ligting has its own warehouse in Dallas, TX 75247, USA. Warehouse area up to 50,000 square feet. We have professional person responsible for warehouse operation. Professional after-sales service, and professional logistic team, can send out all the goods in the same day customer ordered.
