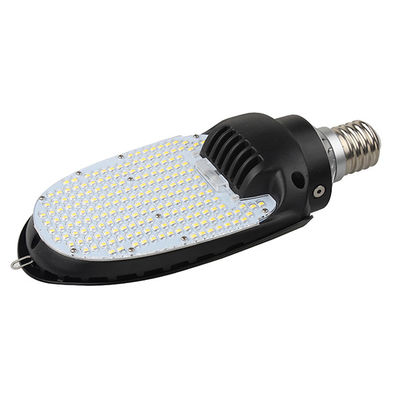

115W LED Retrofit Kits , E39 Canopy Light LED Retrofit Kit
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, cUL, DLC |
| Model Number: | LS-CLH115W1X2-E 5000K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 2pcs/CTN, Carton size:20*16*14inch, Weight: lbs, 3332pcs/40HQ, 2840lcs/40GP, 1372pcs/20GP |
| Delivery Time: | 1-2days |
| Payment Terms: | T/T, CC, PP,Check, Western Union |
| Supply Ability: | 800pcs/week |
|
Detail Information |
|||
| Product Name: | 115W LED Retrofit Lamp | Model No.: | LS-CLH115W1X2-E 5000K |
|---|---|---|---|
| Color Temperature: | 5000K | CRI: | >80Ra |
| Input Power: | 115W | Input Voltage: | 100-277VAC 50/60Hz |
| Viewing Angle: | 120D | Driver Model: | CLG-150-48A( Mean Well Driver ) |
| Waterproof Rating: | IP40 | LED Type: | SMD3030 |
| LED QTY: | 175 PCS | Housing: | Aluminum |
| Housing Color: | Gray | Warranty Time: | 5 Years |
| High Light: | 115W LED Retrofit Kits,E39 LED Retrofit Kits,100V canopy light led retrofit kit |
||
Product Description
Advantage:
● UL,CUL,DLC certificate
● PHILIPS LUMILEDS chip, high CRI.
● 90*150 degree.
● Internal driver, input voltage AC100-277V.
● E39,EX39 lamp base.
● Lamp Base: 270 degree rotated.
● Single SUNON fan.
● New style and high efficient wide-range input.
● Long lifespan and good heat dissipation.
● Direct replacement for Metal Halide, easy Installation.
● Fits many different fixtures to replace traditional lamps.
Specification:
| Product name | LED Retrofit Kit / Lamp | |||
| Part No | LS-CLH115W1X2-E 5000K | LS-CLH115W1X2-EX 5000K | ||
| Lamp Base | E39 | EX39 | ||
| Dimension | 243*113*80 MM | 245*113*80 MM | ||
| Technical Characteristic | ||||
| Color temperature | 4000K,5000K,5700K | |||
| CRI | ＞70 | |||
| Lumen-In Luminaires | 5600-5900 LM | |||
| Lumen Efficacy-In Luminaires | 105-110 LM/W | |||
| Input Power | 115W | |||
| Viewing Angle | 90*150degree | |||
| Input Voltage | AC100-277V 50/60Hz | |||
| PFC | >0.9 | |||
| Equivalent | 120W CFL,175W MHL/HPS/HID | |||
| Waterproof Rating | IP40 | |||
| MATERIALS | ||||
| LED Brand | PHILIPS LUMILEDS | |||
| LED Type | LUXEON 3030 2D(1.5W) | |||
| LED QTY | 112 PCS | |||
| Housing | Magnesium Alloy+AL+PC | |||
| Housing color | Black+Silver | |||
| OTHERS | ||||
| Operating Temperature | -20℃ TO 45℃ | |||
| Operating Humidity | 20％-70％ RH | |||
| Storage Temperature | -30℃ TO 80℃ | |||
| Storage Humidity | 10％-75％ RH | |||
| Application | Replacement Lamps for Outdoor Pole/Arm-mounted Area and Roadway Luminaires | |||
| Safety Certification | UL,CUL,DLC | |||
| Warranty Time | 5 Years | |||
Photometrics:
Product Dimension(mm):
Application:
● Suitable for damp locations. Do not use with dimmers.
● Suitable for use in enclosed luminaires, min. lamp compartment dimensions: 420*210*210MM.
Package:
| Size | Qty/ Carton | Net Weight/ Carton | Gross Weight/ Carton | |
| Inner box | 290*135*105 MM | 1 PC | 0.75 KG | 0.91 KG |
| Outer box | 560*305*230 MM | 8 PCS | 6.0 KG | 8.1 KG |
Warehouse introduction:
Ledsion Ligting has its own warehouse in Dallas, TX 75247, USA. Warehouse area up to 50,000 square feet. We have professional person responsible for warehouse operation. Professional after-sales service, and professional logistic team, can send out all the goods in the same day customer ordered.
