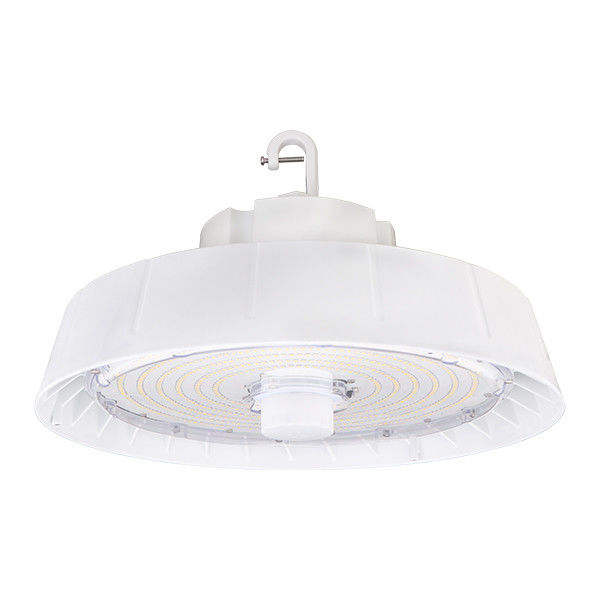

35000LM High Bay UFO Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDSION |
| Certification: | UL, DLC |
| Model Number: | LS7EHB240WBCPD1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package, 2pcs/ctn, 17*17*18.5inch, 25.6lbs, 1636pcs/40HQ , 1396Ppcs/40GP, 674pcs/20GP |
| Delivery Time: | 1-2days |
| Payment Terms: | T/T, CC, Check, PP, Western Union |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Product Name: | 7G 240W LED UFO High Bay Light | Model No.: | LS7EHB240WBCPD1 |
|---|---|---|---|
| Lumen Efficiency: | 130-146lm/W | Lumens Output: | 33000-35000LM |
| Input Voltage: | 100-277Vac 50/60Hz | LED Chips: | SMD 2835 |
| LED Qty: | 680 PCS | Viewing Angle: | 110 Degree |
| CRI: | >80 | Working Temperature: | -30-+45℃ |
| Storage Temperature: | -40℃ TO 80℃ | Power Factor: | >0.9 |
| IP Rating: | WET (IP65) | Color: | White / Black |
| Warranty: | 5 Years | Certificate: | UL, DLC |
| Highlight: | 35000LM high bay ufo lights,33000LM high bay ufo lights,146lm/W high bay led lights |
||
Product Description
7G White 240W LED UFO Highbay light 130lm/W 5000K 100-277Vac 1-10V Dim
Main Features:
- UL DLC certificate
- Fins design, advective holes and grooves in each fin, good for heat dissipation;
- The wide input voltage range AC100-277V (1-10V dimming);
- Professional light distribution technique, high light reflectivity reflectors;
- Output constant current lever can be adjusted through output cable with 1-10V PWM Resistance three in one dimming.
Applications:
1. Food Warehouse, factory and workshops;
2. Highway toll station and gas station;
3. Exhibition hall;Gymnasium and supermarkets, etc.
Basic Specification:
Product Specifications
| Product name | LED High Bay Light |
| Part No | LS7EHB240WBCPD1 |
| Dimension |
Ф350x210 mm or Ф350x235 mm |
Technical Characteristic
| Color temperature | 4000K 5000K 5700K |
| CRI | >80Ra |
| Cover | Clear PC |
| Lumen |
33000-35000LM |
| Viewing Angle | 110D |
| Input Power | 240W |
| Input Voltage | 100-277Vac 50/60Hz |
| Driver Brand |
China Brand Driver (1-10V/PWM/Resistance three in one dimming ) |
| Optional Accessory | Motion Sensor / Surge-Protective Device |
| PF | >0.9 |
| Waterproof Rating | WET Location (IP65) |
Materials
| LED Type | SMD 2835 |
| LED QTY | 680 PCS |
| Housing | Aluminum |
| Housing color | Any color(default black) |
| Cover | PC cover |
Others
| Operating Temperature | -40℃ TO 50℃ |
| Operating Humidity | 10％-90％ RH |
| Storage Temperature | -40℃ TO 80℃ |
| Storage Humidity | 10％-95％ |
| Application | Indoor |
| Safety Certification | UL, DLC |
| Warranty Time | 5 Years |
Photometrics:
Product Dimension(mm):
| Item | With open hook | with U bracket |
| 240W | Φ350×210mm | Φ350×235mm |
Package:
| Size | Qty / Carton | Gross Weight / Carton | |
| inner box | 400*400*210mm | 1 PC | 5.4 KG |
| outer box | 425*425*460mm | 2 PC | 11.6 KG |
FAQ:
Q1: Are you a factory or trading company? Where is your company located?
A: We are a factory 100%, Our company is located in Shenzhen, GD, China, faactory located in Jiangmen,GD,China
Q2: What is the warranty for our lamps?
A: We have 5 years warranty for our lamps
Q3: How do you ensure the quality
A: We are working with QC processes to guaranty the quality:
Q4: How to do if any quality problems from our reason in the warranty time?
A: First, take pictures or videos as proof and send to us, then we will replace new one for free.
Q5: OEM OR ODM accepted?
A: Yes, we can do OEM & ODM, logo on the light or package both is available.
Q6: Can we get support if we have our own market position?
A: Please inform us your detailed market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
Q7: What's your MOQ? Can I order small quantity for testing at first order?
A: MOQ 1pcs, we accept small order for building mutual trust and long-term business relationship.
Warehouse introduction:
Ledsion Ligting has its own warehouse in Dallas, TX 75247, USA. Warehouse area up to 50,000 square feet. We have professional person responsible for warehouse operation. Professional after-sales service, and professional logistic team, can send out all the goods in the same day customer ordered.
